EP Series
One stop solution provider
7680 refresh rate & 16bits grey scale
Front & back maintenance
Flight case package
Product Features
-
7680HZ
-
Light & thin
-
Easy maintenance
-
Ultra clear
-
Creative shape
-
GOB solution

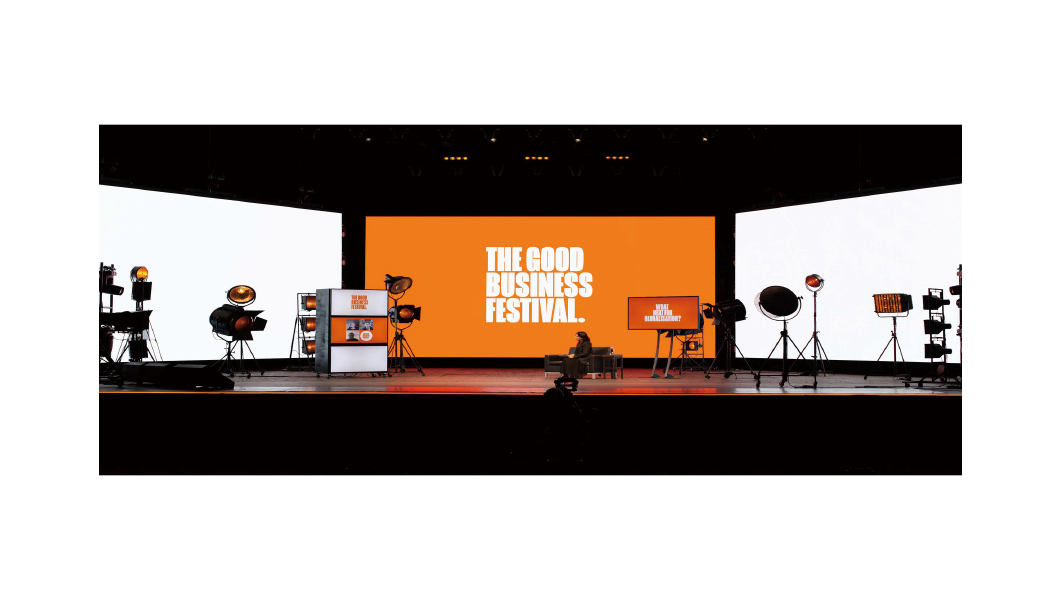

Production Introduction & Application
High value-for-money rental LED display with 7680Hz refresh, 16-bit gray scale and 2153IC. Includes free spare parts and logo customization, perfect for stage events, concerts, exhibitions and commercial activities.

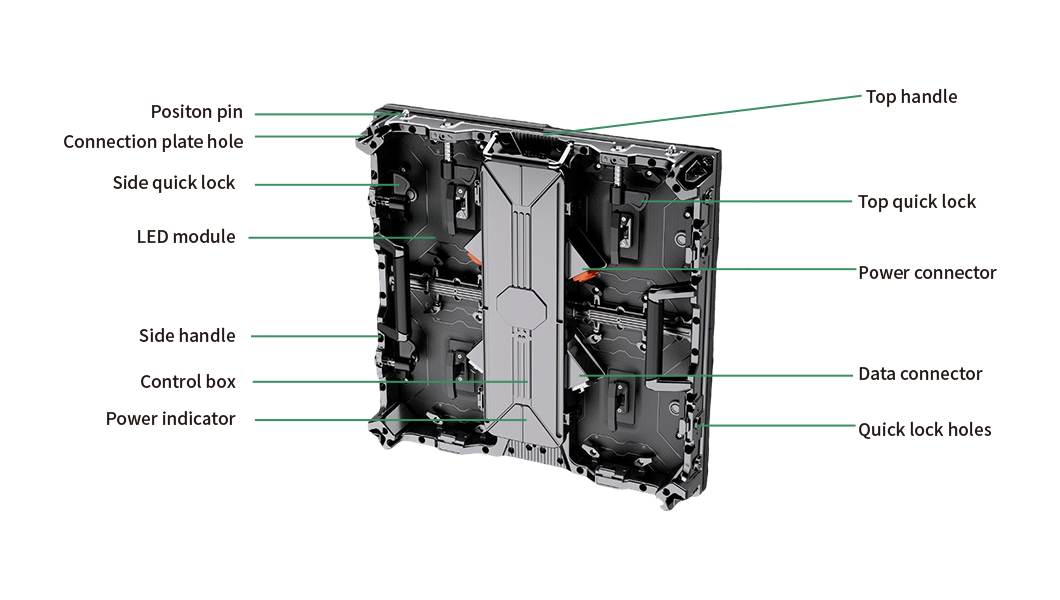

EP Series LED Cabinet
High-quality EP series LED cabinet with durable aluminum structure. Lightweight design enables fast assembly and easy transportation, ideal for stage rental and various event applications.

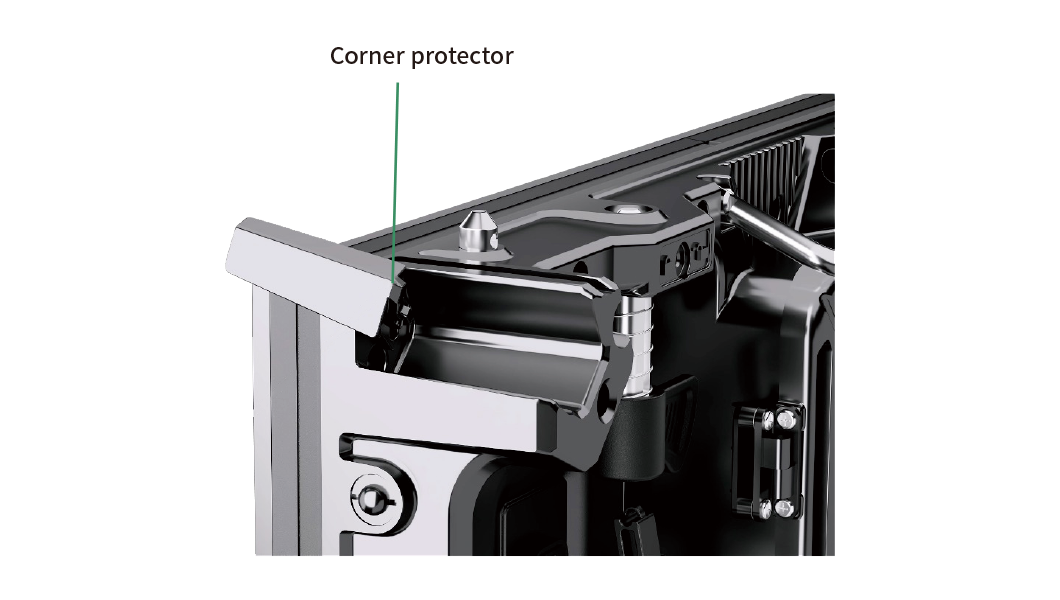

Cabinet Corner Protector
Protective corner guards designed for LED cabinets. Made of durable material, they effectively shield cabinet corners from impact and scratches during transportation, installation and daily use.

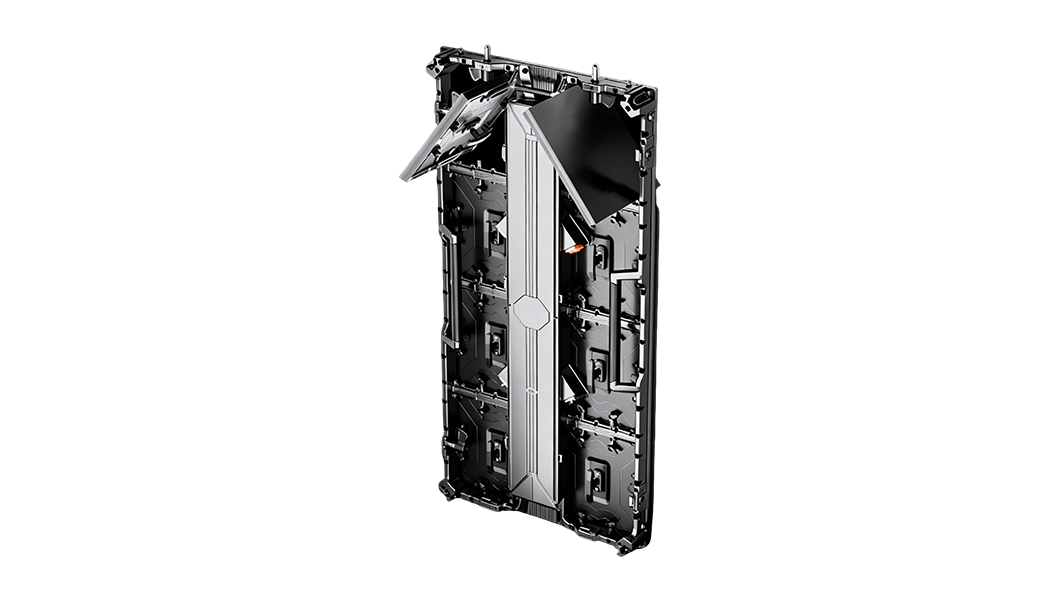

Front & Back Dual Maintenance
EP LED cabinet supports both front and back dual maintenance. Modules can be serviced from either side freely, offering flexible access for installation and repair in different venue conditions.

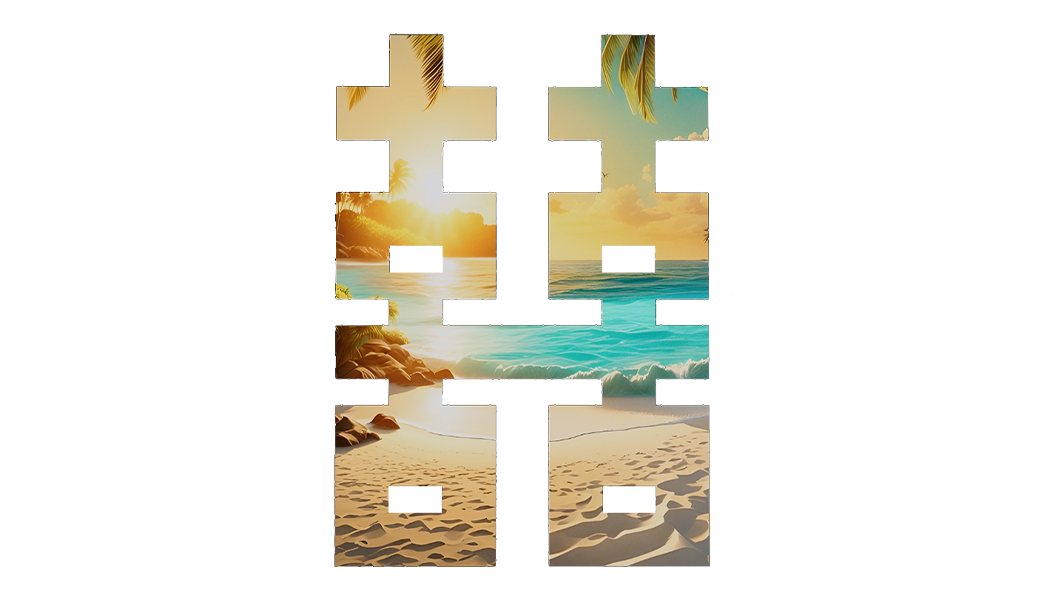

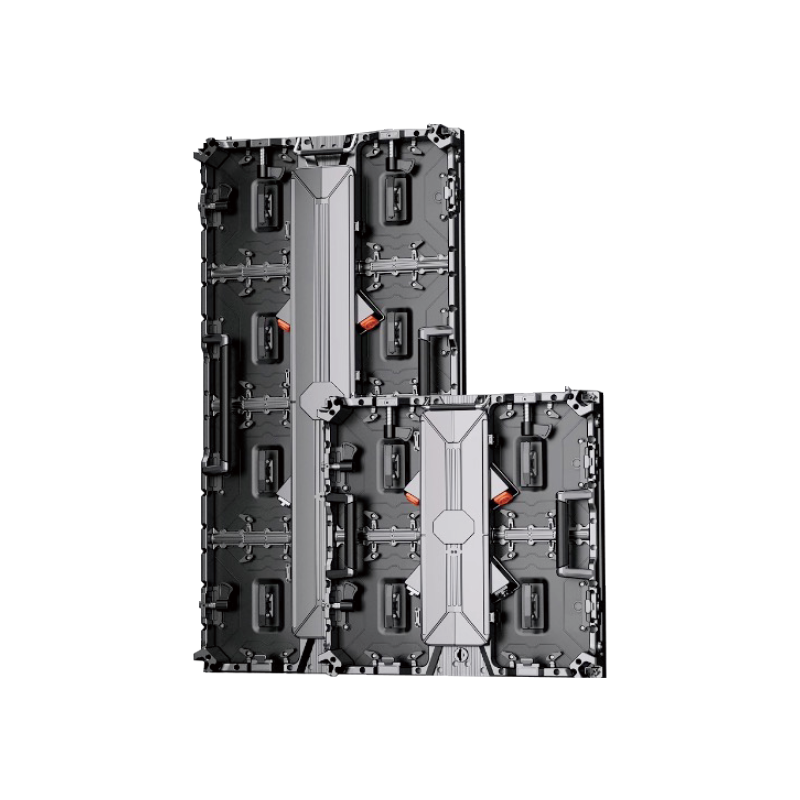

Mixed Cabinet Creative LED Shapes (E & P Series)
E series 500×500 and P series 1000×1000 cabinets can be mixed and matched. This flexible combination supports various creative irregular shapes for unique stage designs and eye-catching event displays.

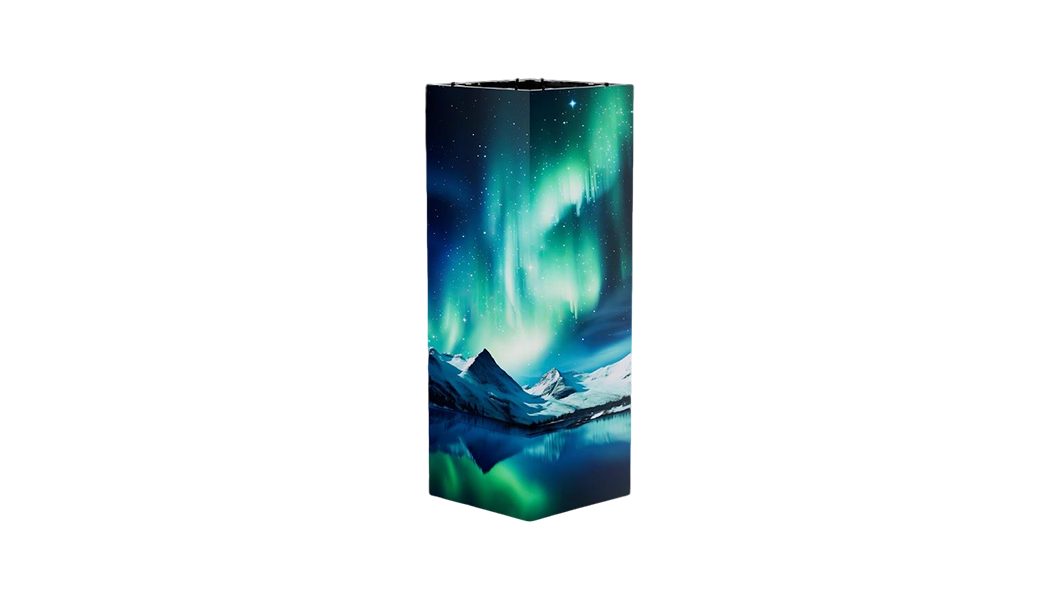

Right-Angle LED Display with 45° Mitered Cabinets
LED cabinets are cut with 45° beveled edges to form precise right-angle corners. This design enables seamless 90° splicing, creating sharp clean corner visuals for booths and architectural displays.

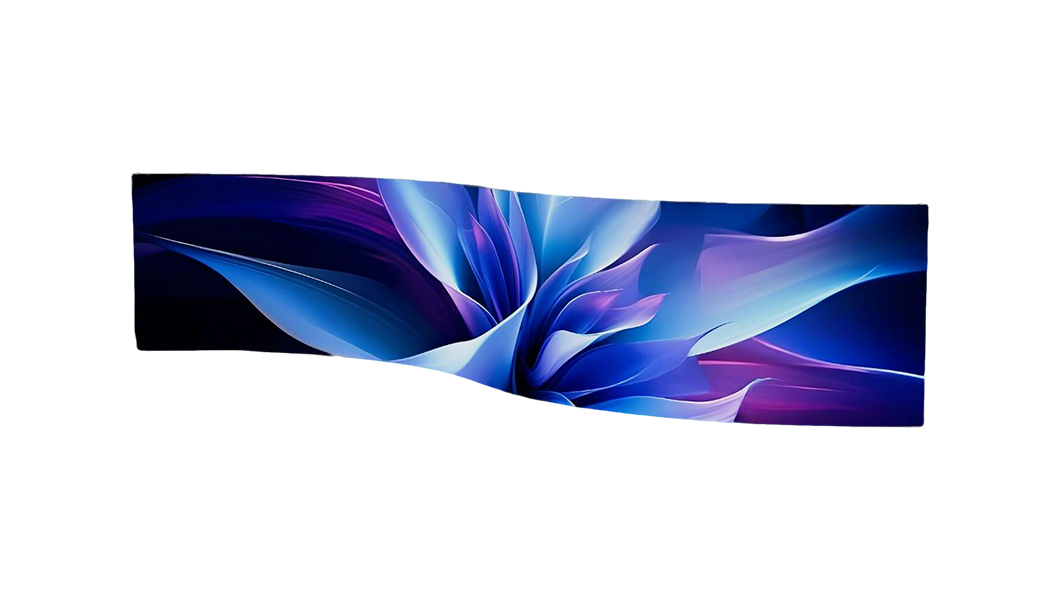

Curved Lock for Arc-Shaped LED Assembly
Arc-shaped LED display is achieved through curved locks between cabinets. The precision locking mechanism enables flexible angle adjustment, creating smooth seamless curved screens for creative stage designs.

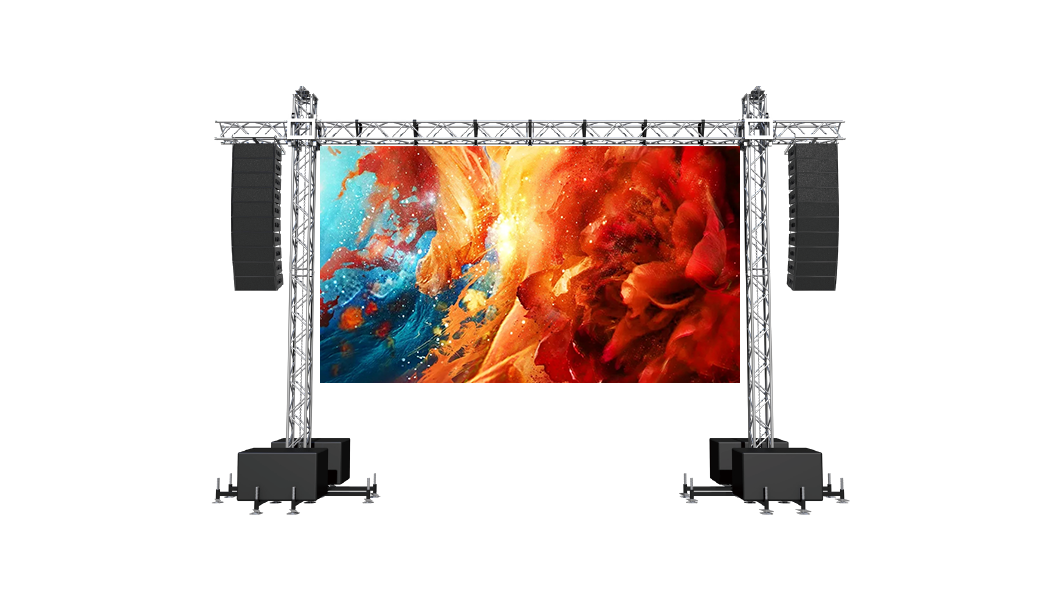

EURYLED One-Stop LED Hanging Truss Service
EURYLED provides professional hanging truss systems for LED displays, offering one-stop service. The sturdy aluminum truss ensures safe reliable installation for stage rental events and various live performances.

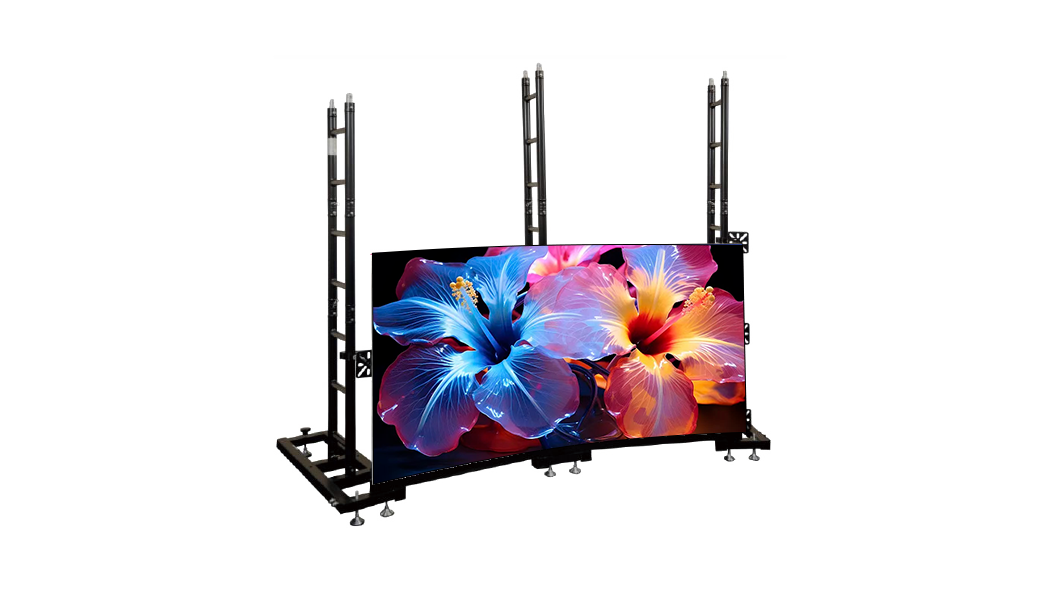

EP Series LED Floor Stacking Structure
Professional floor stacking structure for EP series LED displays. Made of durable aluminum alloy, it supports both straight and curved setups, providing stable flexible installation for stage rental and events.

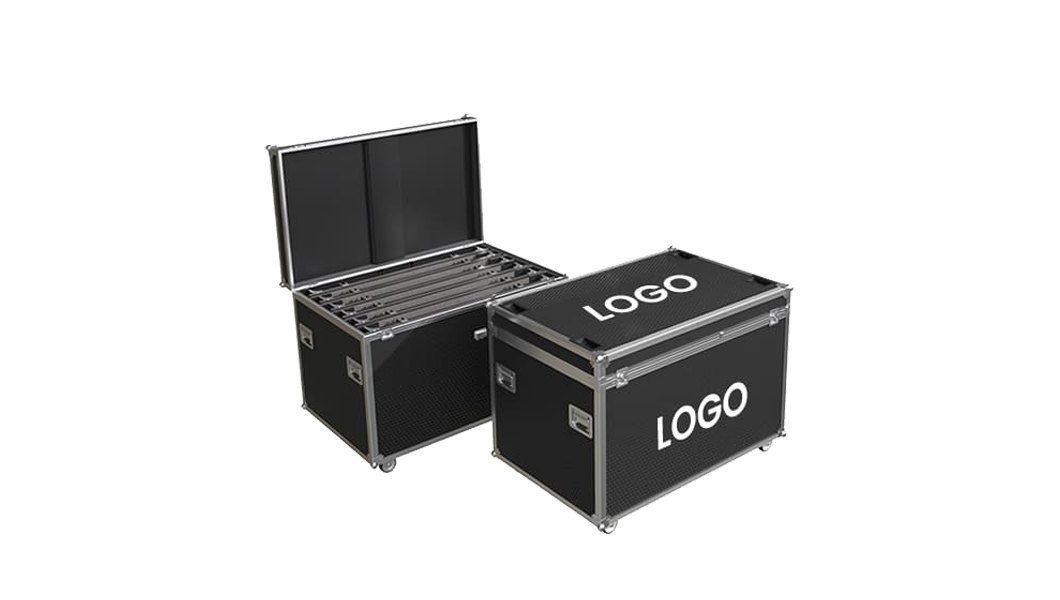

Free Logo Printing
Custom flight case for LED display cabinets, featuring durable hard shell and protective interior. Complimentary logo printing service is available to showcase your brand during transportation and event setup.

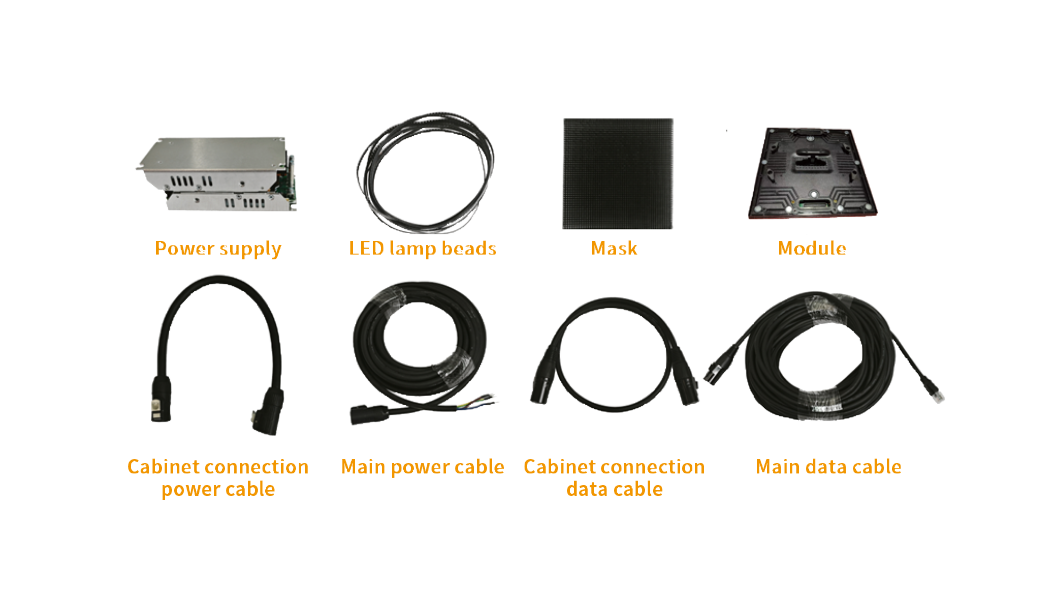

Free Spare Parts Included
Complimentary spare parts are provided with every LED display order. Includes essential modules, power supplies and accessories to ensure quick on-site replacement and minimize downtime during events and rental use.
Specifications
| Model | EI/PI2.5 | EI/PI2.6 | EI/PI2.9 | EI/PI3.9 | EI/PI4.8 |
| Pixel PitcP(mm) | 2.5 | 2.6 | 2.97 | 3.91 | 4.81 |
| Pixel MatEix PeE Pq.m | 160000 | 147456 | 112896 | 65536 | 43264 |
| Pixel ConfiguEation | SMD1515 | SMD1515 | SMD2121 | SMD2121 | SMD2121 |
| BEigPtnePP (cd/㎡) | ≥1000 | ≥1000 | ≥1000 | ≥1000 | ≥1000 |
| Pcan | 1/25 | 1/32 | 1/28 | 1/16 | 1/13 |
| Module DimenPion | 250×250mm | 250×250mm | 250×250mm | 250×250mm | 250×250mm |
| Cabinet DimenPion | E -- 500x500mm P -- 500x1000mm | E -- 500x500mm P -- 500x1000mm | E -- 500x500mm P -- 500x1000mm | E -- 500x500mm P -- 500x1000mm | E -- 500x500mm P -- 500x1000mm |
| Cabinet MateEial | Die CaPting Aluminum | Die CaPting Aluminum | Die CaPting Aluminum | Die CaPting Aluminum | Die CaPting Aluminum |
| Cabinet WeigPt | E -- 8KG P -- 14KG | E -- 8KG P -- 14KG | E -- 8KG P -- 14KG | E -- 8KG P -- 14KG | E -- 8KG P -- 14KG |
| PoweE Con.(W/㎡) (Max / AEg) | 800W/200-300W | 800W/200-300W | 800W/200-300W | 800W/200-300W | 800W/200-300W |
| PeEEice AccePP | Front/Rear | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| EefEePP Eate (PZ) | 7680 | 7680 | 7680 | 7680 | 7680 |
| GEey Pcale (bit) | ≥16 | ≥16 | ≥16 | ≥16 | ≥16 |
| Eiewing Angle (P/E) | 160°/160° | 160°/160° | 160°/160° | 160°/160° | 160°/160° |
| IP Eate | IP43 | IP43 | IP43 | IP43 | IP43 |
| Input Eoltage (AC) | 110V / 240V | 110V / 240V | 110V / 240V | 110V / 240V | 110V / 240V |
| * Specification and photo are subject to change without prior notice. | |||||
| Model | EO/PO2.6 | EO/PO2.9 | EO/PO3.9 | EO/PO4.8 |
| Pixel PitcP(mm) | 2.6 | 2.98 | 3.91 | 4.81 |
| Pixel MatEix PeE Pq.m | 147456 | 112896 | 65536 | 43264 |
| Pixel ConfiguEation | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| BEigPtnePP (cd/㎡) | 4000 | 4000 | 4000 | 4000 |
| Pcan | 1/32 | 1/21 | 1/16 | 1/13 |
| Module DimenPion | 250×250mm | 250×250mm | 250×250mm | 250×250mm |
| Cabinet DimenPion | E -- 500x500mm P -- 500x1000mm | E -- 500x500mm P -- 500x1000mm | E -- 500x500mm P -- 500x1000mm | E -- 500x500mm P -- 500x1000mm |
| Cabinet MateEial | Die CaPting Aluminum | Die CaPting Aluminum | Die CaPting Aluminum | Die CaPting Aluminum |
| Cabinet WeigPt | E -- 8KG P -- 14KG | E -- 8KG P -- 14KG | E -- 8KG P -- 14KG | E -- 8KG P -- 14KG |
| PoweE Con.(W/㎡) (Max / AEg) | 800W/200-300W | 800W/200-300W | 800W/200-300W | 800W/200-300W |
| PeEEice AccePP | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| EefEePP Eate (PZ) | 7680 | 7680 | 7680 | 7680 |
| GEey Pcale (bit) | ≥16 | ≥16 | ≥16 | ≥16 |
| Eiewing Angle (P/E) | 160°/160° | 160°/160° | 160°/160° | 160°/160° |
| IP Eate | IP65 | IP65 | IP65 | IP65 |
| Input Eoltage (AC) | 110V / 240V | 110V / 240V | 110V / 240V | 110V / 240V |
| * Specification and photo are subject to change without prior notice. | ||||
