OW Series
Aluminum cabinet & module
Power saving solution available
3D Led wall solution available
IP66 protection level
Product Features
-
7680HZ
-
Front & rear access
-
Power saving
-
Max 10,000nits +
-
High-level protection
-
Hidden wiring
Production Introduction & Application
OW Series features lightweight aluminum cabinet, energy-saving common cathode circuit cutting power loss by 45%. With IP66 dustproof & waterproof rating, it stably runs in all harsh outdoor weather for landmark advertising and 3D curved display projects.
Aluminum Cabinet & Cable-free Design
Ultra-light aluminum cabinet with fully cable-free internal layout. Integrated power supply & receiving card, standardized fittings for quick, neat and reliable assembly.

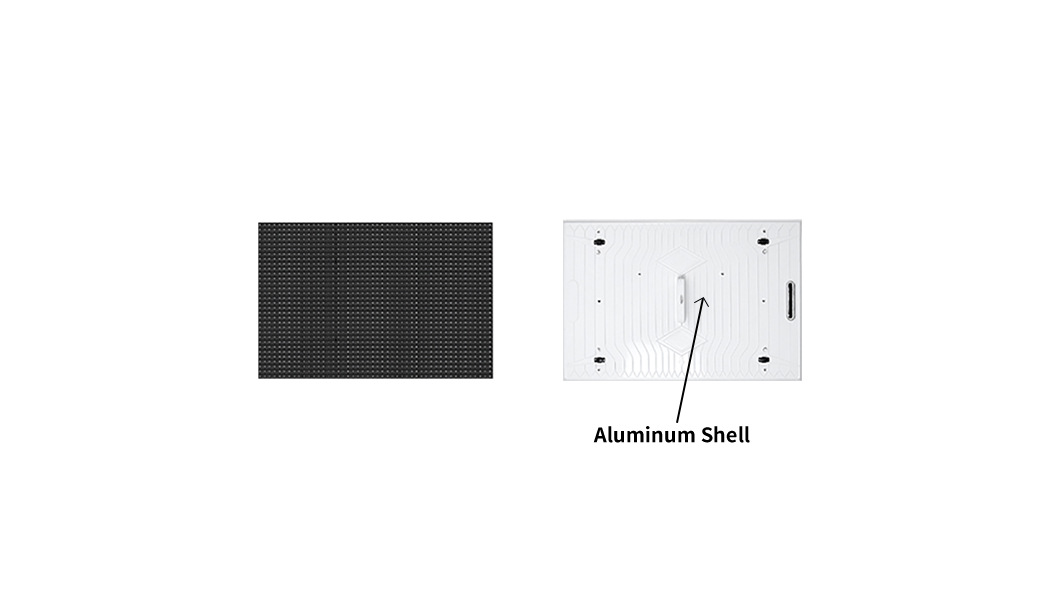

Aluminum Module
Integrated lightweight aluminum shell, great heat dissipation & high rigidity. Thin & compact panel, easy splicing, stable structure, long service life for indoor LED display.

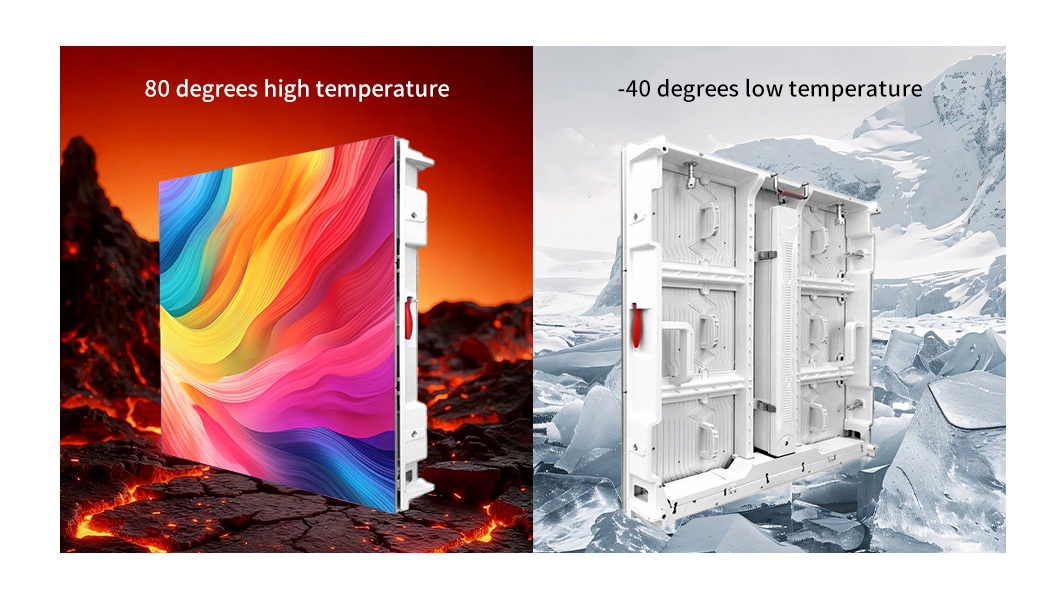

IP66 Protective Level
Wide temperature adaptability from -40℃ to 80℃. Stable display performance under extreme cold & scorching heat, fits for outdoor harsh environments.

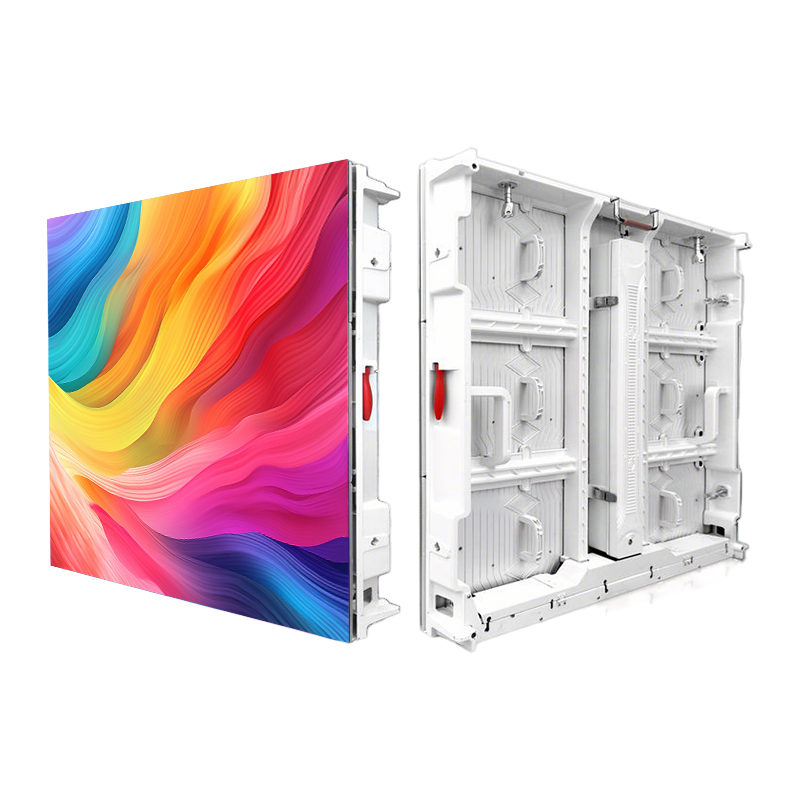

Front Installation & Maintenance
EURYLED OW Series is front-install & front-service design. All wiring, power supply and receiving card accessible from screen front, no rear operation needed, fit narrow-wall space.
High Contrast & High Grey Scale
Ultra-high contrast ratio & 16-bit high gray scale. Delicate color gradient, rich layered picture, true-to-life vivid display with smooth color transition.
Flawless Ultra HD Image Performance
Stunning Ultra HD display with high resolution. Zero flicker & motion trailing, every tiny detail rendered clearly for smooth, lifelike visuals.

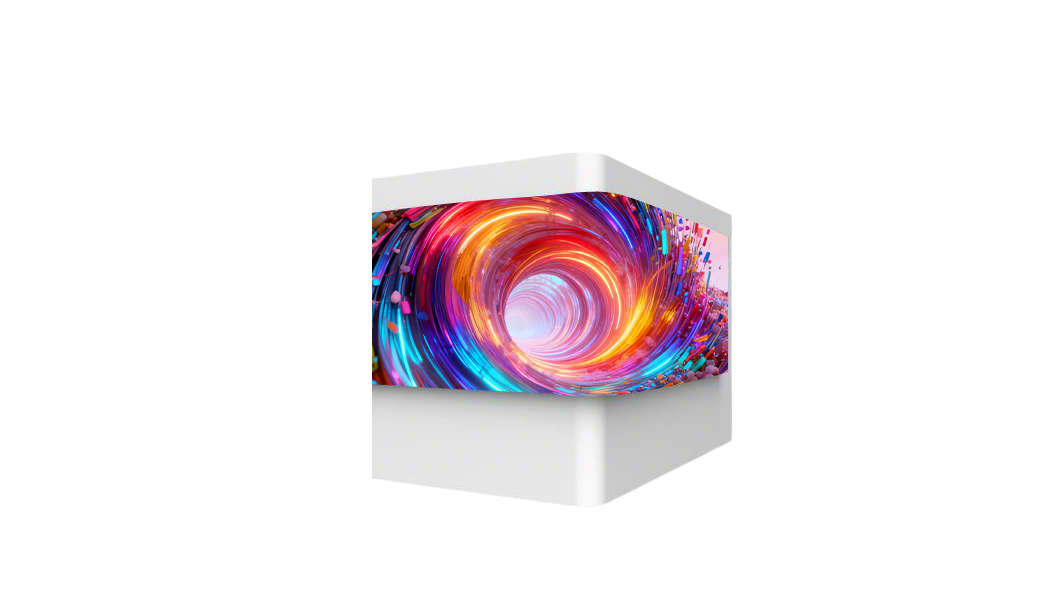

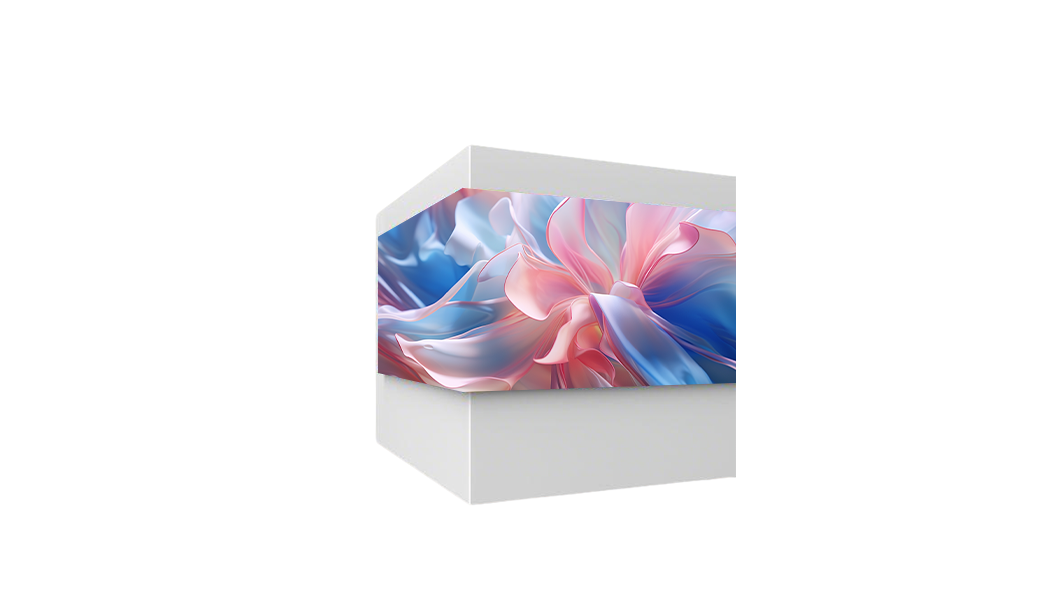

Outdoor Seamless 3D Curved Corner LED Screen
Seamless rounded curved cabinets create wrap-around immersive 3D stereo vision. Lightweight aluminum shell with IP66 dustproof & waterproof grade, ideal for creative outdoor landmark stereo advertising.

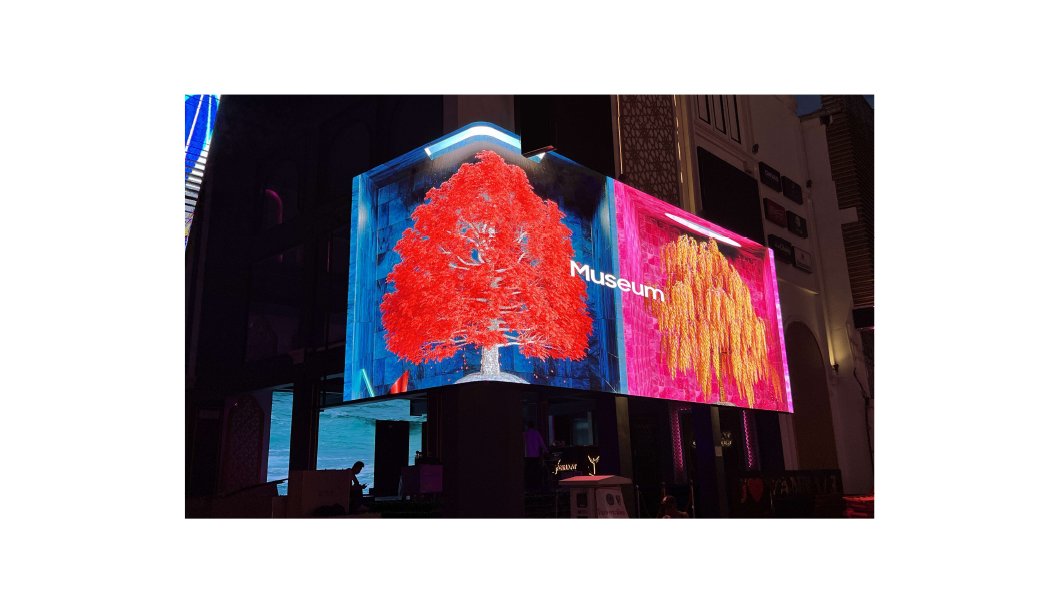

Outdoor 3D Right-Angle Seamless LED Screen
Outdoor seamless right-angle 3D LED screen. L-shaped wrapping design creates immersive stereo visuals, waterproof & wide-temperature resistant for outdoor landmark projects.
Ultra-high Brightness Up to 10,000+ Nits
Customizable ultra-high brightness up to 10,000+ nits. Vivid & clear image under direct sunlight, no washed-out color for outdoor advertising screens.
Energy-Saving Common Cathode Technology
Energy-saving common cathode tech supplies red 2.8V, green & blue 3.8V separately. Eliminate redundant voltage loss, save up to 45% power with less heat generation.
Specifications
| OW 480x320mm Series Specification | |||||
| Model-480x320 Series | OW4.4 | OW5.7 | OW6.6 | OW8 | OW10 |
| Pixel Pitch(mm) | 4.4 | 5.7 | 6.67 | 8 | 10 |
| Pixel Matrix Per Sq.m | 51,652 | 30,625 | 22,500 | 15,625 | 10,000 |
| Pixel Configuration | SMD1921 | SMD2727 | SMD2727 | SMD2727 | SMD3535 |
| Brightness (cd/㎡) | 5,000 | 5,500-10,000 | 5,500-10,000 | 5,500-11,000 | 5,500-11,000 |
| Scan | 1/9 | 1/7 | 1/6 | 1/3 | 1/5 |
| Module Dimension | 480x320mm / 1.57x1.05ft | 480x320mm / 1.57x1.05ft | 480x320mm / 1.57x1.05ft | 480x320mm / 1.57x1.05ft | 480x320mm / 1.57x1.05ft |
| Cabinet Dimension | 960x960mm / 3.15x3.15ft | 960x960mm / 3.15x3.15ft | 960x960mm / 3.15x3.15ft | 960x960mm / 3.15x3.15ft | 960x960mm / 3.15x3.15ft |
| Cabinet Resolution | 218x218 | 168x168 | 144x144 | 120x120 | 96x96 |
| Cabinet Material | Profile Aluminum | Profile Aluminum | Profile Aluminum | Profile Aluminum | Profile Aluminum |
| Cabinet Weight | 25KG | 25KG | 25KG | 25KG | 25KG |
| Power Con.(W/㎡) (Max / Avg) | 600W/180W | 600W/180W | 600W/180W | 600W/180W | 600W/180W |
| Service Access | Front & Rear | Front & Rear | Front & Rear | Front & Rear | Front & Rear |
| Refresh Rate (HZ) | 7680 | 7680 | 7680 | 7680 | 7680 |
| Grey Scale (bit) | 14 | 14 | 14 | 14 | 14 |
| Viewing Angle (H/V) | 140°/140° | 140°/140° | 140°/140° | 140°/140° | 140°/140° |
| IP Rate | IP66 | IP66 | IP66 | IP66 | IP66 |
| Operation Temperature | -20℃ ~ +60°℃ | -20℃ ~ +60°℃ | -20℃ ~ +60°℃ | -20℃ ~ +60°℃ | -20℃ ~ +60°℃ |
| Input Voltage (AC) | 110V / 220V | 110V / 220V | 110V / 220V | 110V / 220V | 110V / 220V |
| * Specifications and photos are subject to change without prior notice. | |||||
| OW 250x250mm Series Specification | ||||
| Model-250x250 Series | OW1.9-GOB | OW2.6-GOB | OW2.9 | OW3.9 |
| Pixel Pitch(mm) | 1.95 | 2.6 | 2.9 | 3.9 |
| Pixel Matrix Per Sq.m | 262,144 | 147,456 | 112,896 | 65,536 |
| Pixel Configuration | SMD1415 | SMD1415 | SMD1415 | SMD1921 |
| Brightness (cd/㎡) | 5,000 | 5,000 | 5,000 | 6,000 |
| Scan | 1/32 | 1/24 | 1/21 | 1/8 |
| Module Dimension | 250x250mm / 0.82x0.82ft | 250x250mm / 0.82x0.82ft | 250x250mm / 0.82x0.82ft | 250x250mm / 0.82x0.82ft |
| Cabinet Dimension | 1000x1000mm / 3.28x3.28ft | 1000x1000mm / 3.28x3.28ft | 1000x1000mm / 3.28x3.28ft | 1000x1000mm / 3.28x3.28ft |
| Cabinet Resolution | 512x512 | 384x384 | 336x336 | 256x256 |
| Cabinet Material | Profile Aluminum | Profile Aluminum | Profile Aluminum | Profile Aluminum |
| Cabinet Weight | 26KG | 26KG | 26KG | 26KG |
| Power Con.(W/㎡) (Max / Avg) | 600W/180W | 600W/180W | 600W/180W | 600W/180W |
| Service Access | Front & Rear | Front & Rear | Front & Rear | Front & Rear |
| Refresh Rate (HZ) | 7680 | 7680 | 7680 | 7680 |
| Grey Scale (bit) | 14 | 14 | 14 | 14 |
| Viewing Angle (H/V) | 140°/140° | 140°/140° | 140°/140° | 140°/140° |
| IP Rate | IP66 | IP66 | IP66 | IP66 |
| Operation Temperature | -20℃ ~ +60°℃ | -20℃ ~ +60°℃ | -20℃ ~ +60°℃ | -20℃ ~ +60°℃ |
| Input Voltage (AC) | 110V / 220V | 110V / 220V | 110V / 220V | 110V / 220V |
| * Specifications and photos are subject to change without prior notice. | ||||
