Film LED Display
Flexible & Customizable
Ultra Light, Thin & Transparent
Anti-UV & non-flammable
3 Years warranty
Product Features
-
7680HZ
-
No warping corners
-
No glue peeling
-
Creative shape
-
Easy maintenance
-
Hidden wiring
Production Introduction & Application

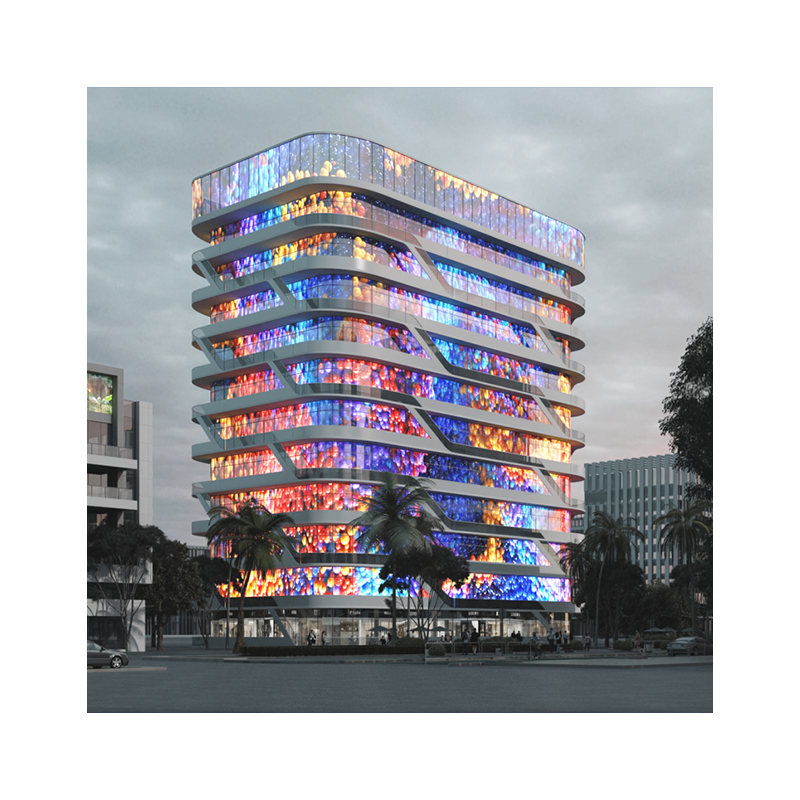

EURYLED Ultra-thin transparent LED film display that adheres directly to glass surfaces. Nearly invisible when off, it delivers bright clear visuals while maintaining natural light transmission, perfect for retail windows and architectural glass installations.
4-Layer LED Film Display Structure
EURYLED LED film display features a well-engineered 4-layer structure: release film, adhesive layer, bead circuit and substrate. This optimized design ensures easy application, reliable adhesion and stable performance for glass installations.

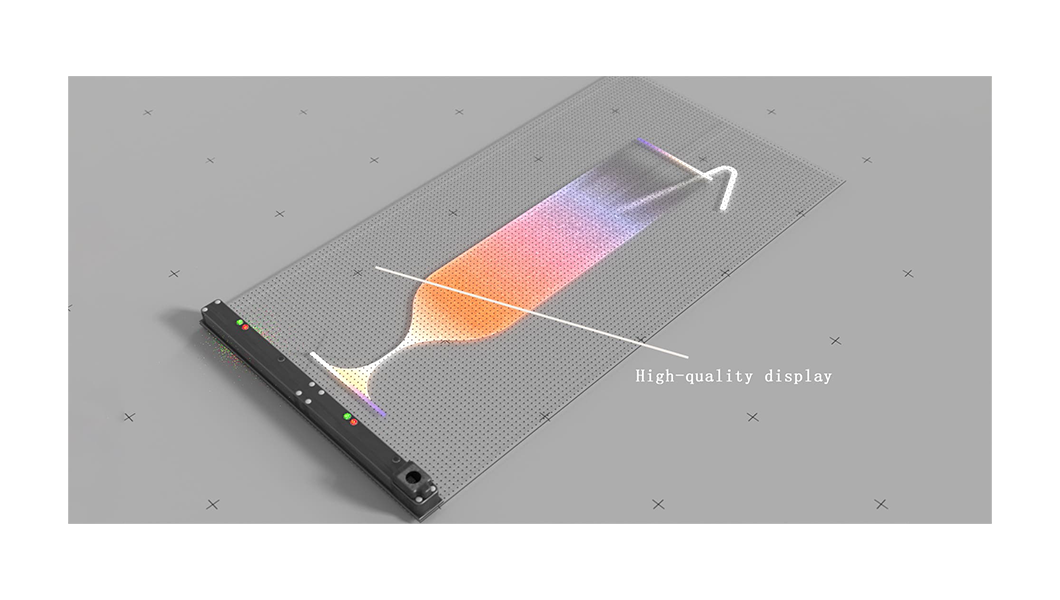

High-Quality Transparent LED Film Display
Delivers exceptional high-quality display performance on transparent LED film. Bright vivid colors and sharp clear images shine through while maintaining excellent light transmittance, creating stunning visual effects for glass window installations.

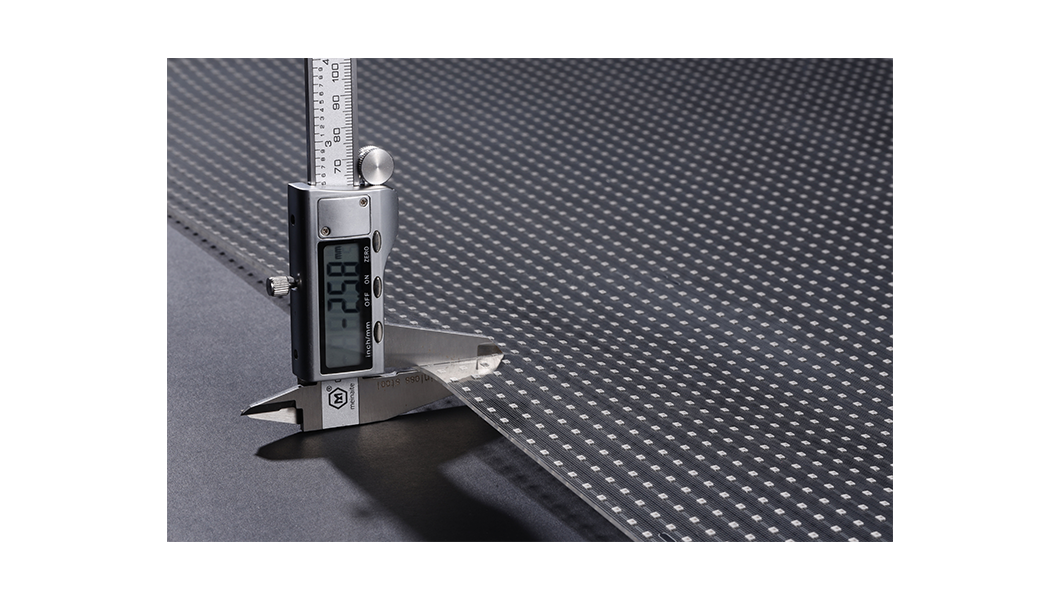

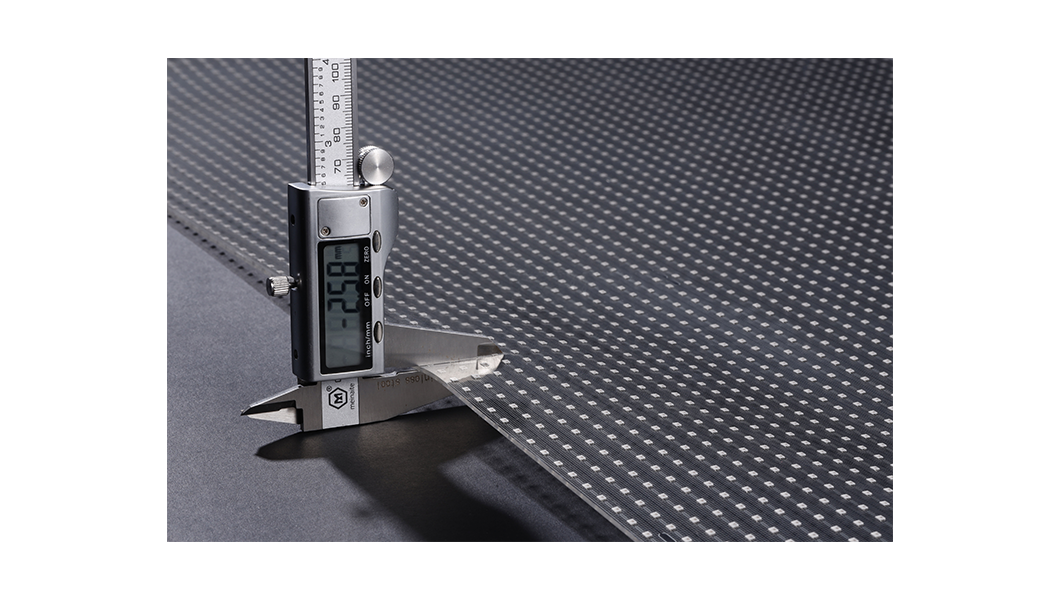

Ultra-Thin LED Film Display
The LED film display features an ultra-thin profile with minimal thickness. Its slim lightweight design allows seamless integration onto glass surfaces without affecting building aesthetics, ideal for architectural and retail window applications.

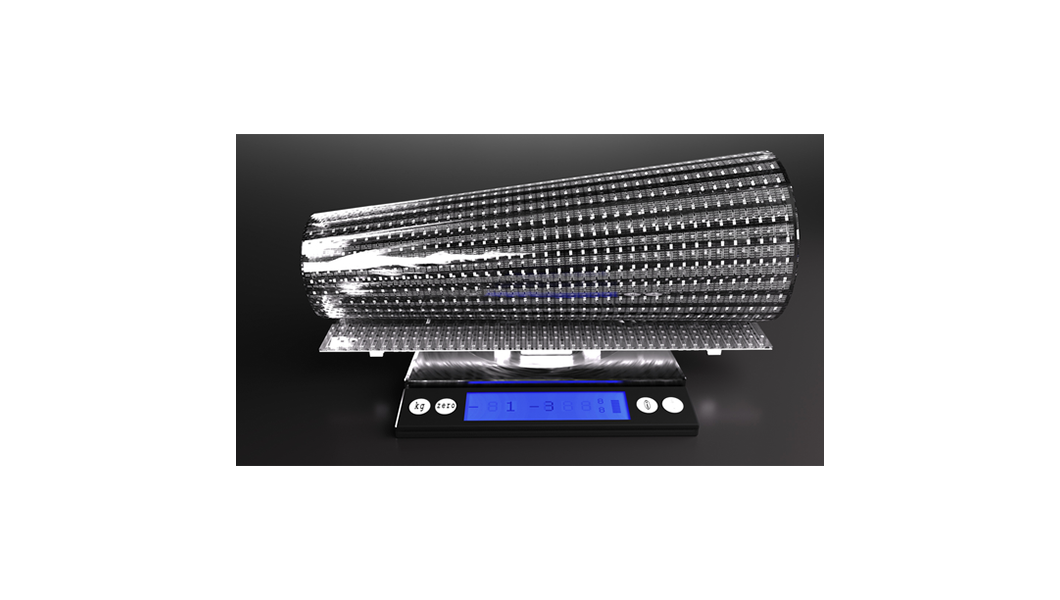

Ultra-Lightweight LED Film Display
The LED film display features ultra-lightweight construction with minimal weight per unit area. It reduces structural load on glass, simplifies installation, and adds no extra burden to existing window or curtain wall structures.

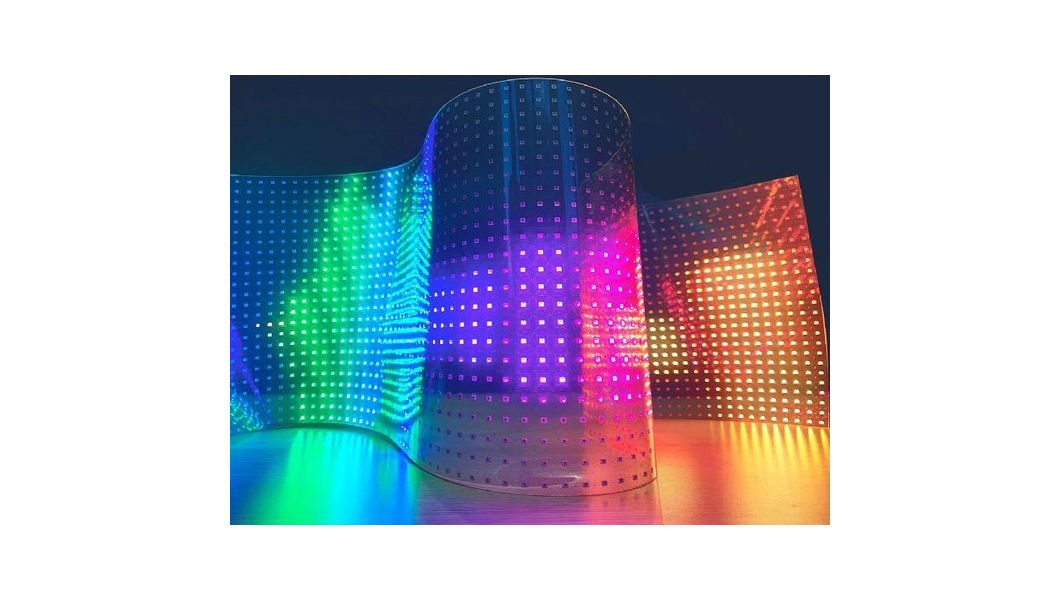

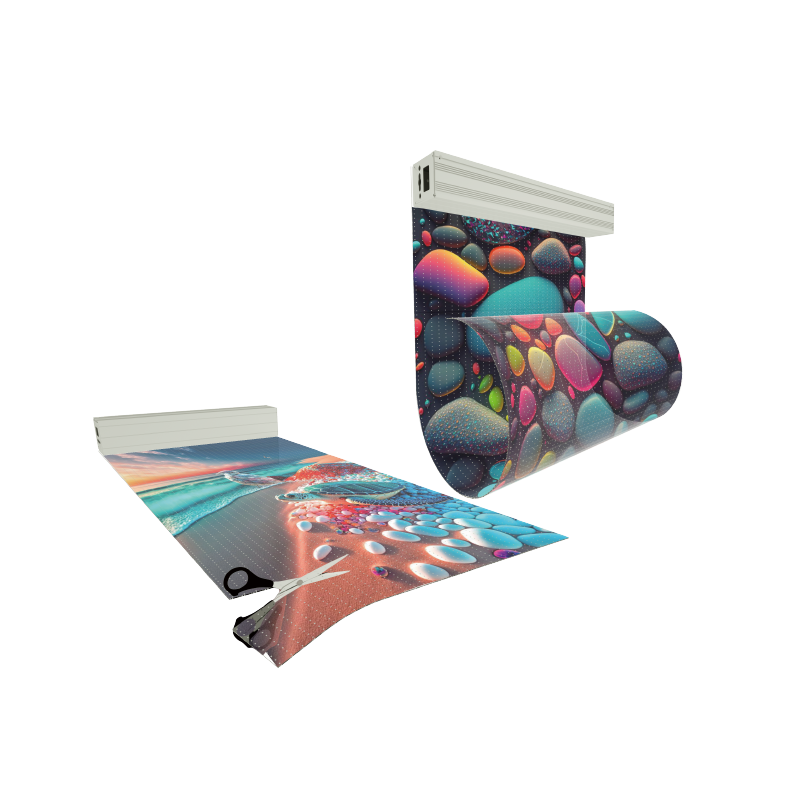

Rollable Flexible LED Film Screen
This rollable flexible LED film screen can be freely bent and rolled for easy transport. Its soft adaptable design fits perfectly on curved surfaces, cylinders and irregular structures for creative display solutions.

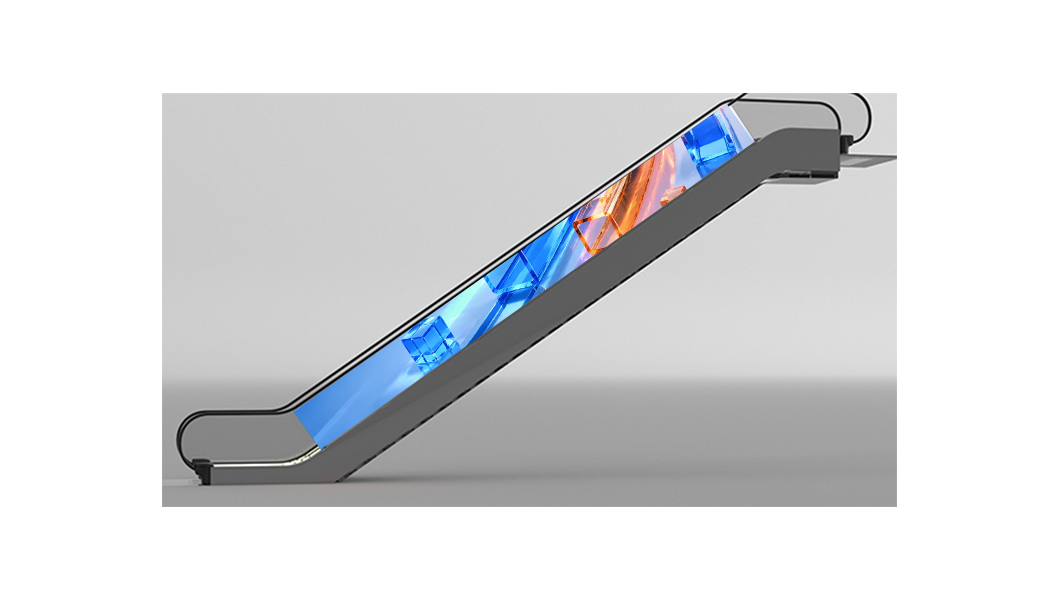

Escalator Side LED Film Display Application
Perfectly suited for escalator side installations. The flexible thin LED film adheres smoothly to curved escalator surfaces, transforming ordinary handrail areas into eye-catching digital advertising displays for shopping malls and commercial buildings.
Specifications
| Pixels | P4 | P6 | P6.25 | P8 | P10 | P20 |
| Pixel density (point/ m²) | 62,500 | 27,777 | 25,600 | 15,625 | 10,000 | 2,500 |
| Module ruler (WxHxD) | 800x240 | 816x384 | 1000x400 | 1000x400 | 1000x400 | 1000x400 |
| Transparancy | ≥85% | ≥85% | ≥90% | ≥90% | ≥95% | ≥97% |
| Brightness | ≥4000 | ≥4000 | ≥4000 | ≥4000 | ≥4000 | ≥4000 |
| LED model | SMD2121 three-in-one integratad drive | |||||
| Brightness/ chrominance uniformity | ≥97％ | |||||
| Viewing angle (H×V) | 160x160° | |||||
| Service life | 100,000H | |||||
| Breakpoint continuation | Support | |||||
| Operating temperature | －40℃~80℃ | |||||
| Bending installation | Support | |||||
| Color processing | 16bit | |||||
| Weight | 3㎏/㎡ | |||||
| Supply voltage | 5V | |||||
| * Speci_x005fcations and photos are subject to change without prior notice. | ||||||
