OA Series
Front & back maintenance
7680 refresh & high gray sacle
Power saving solution
3D solution available
Product Features
-
7680HZ
-
Max 10,000nits +
-
Power saving
-
Hidden wiring
-
Front & rear access
-
Stadium perimeter compatible
Production Introduction & Application
Built with aluminum cabinet, featuring front and back dual access maintenance, and capable of forming 3D right-angle corner screens. Sturdy versatile design meets various creative installation and rental event requirements.

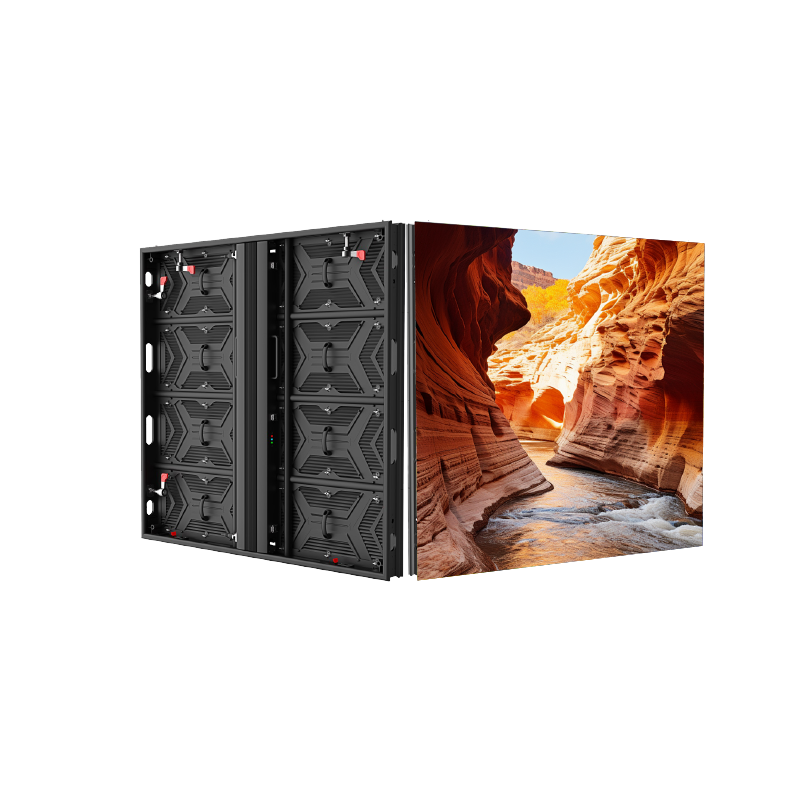

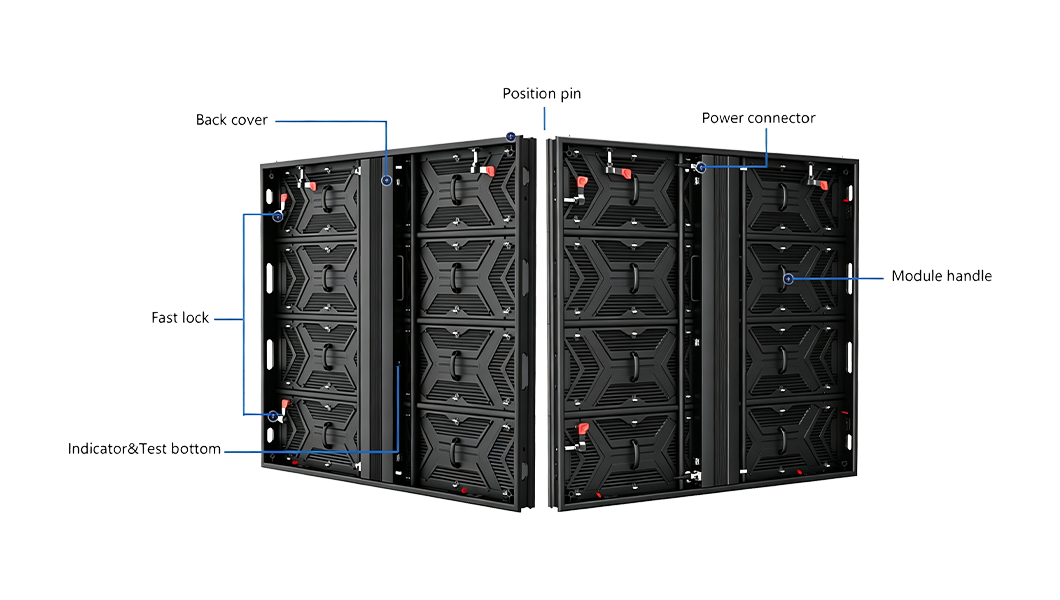

Quick-Assembly LED Cabinet Structure
Well-engineered LED cabinet with integrated fast locks, positioning pins, module handles and quick power connectors. Tool-free splicing and user-friendly maintenance design greatly simplifies installation and daily upkeep work.

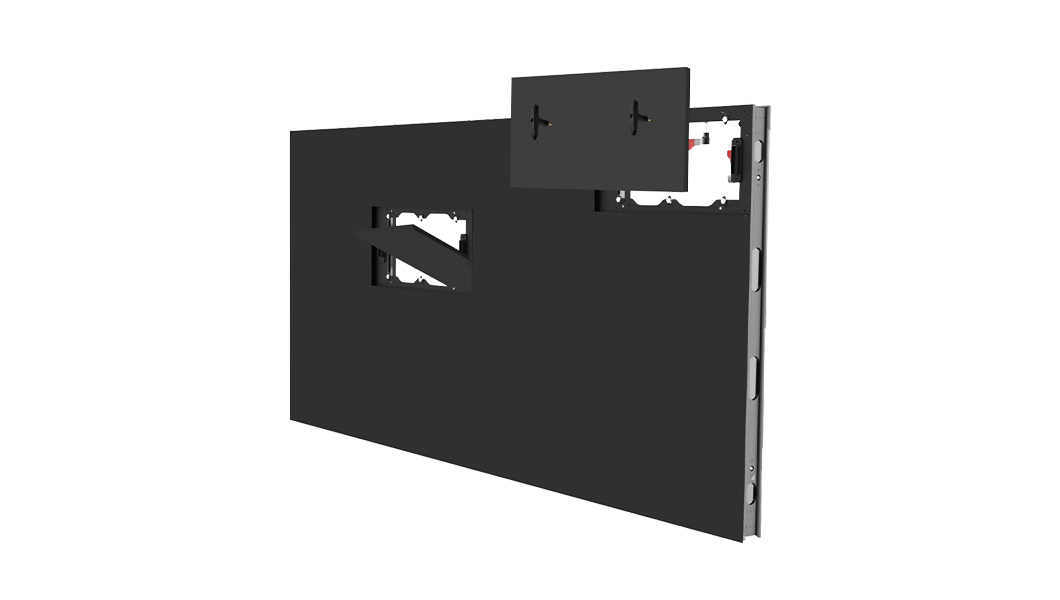

Front & Rear Dual Maintenance Design
Supports both front and rear dual maintenance access. Modular detachable rear panels allow targeted component servicing from the back, while front module access provides flexible maintenance options for different installation environments.

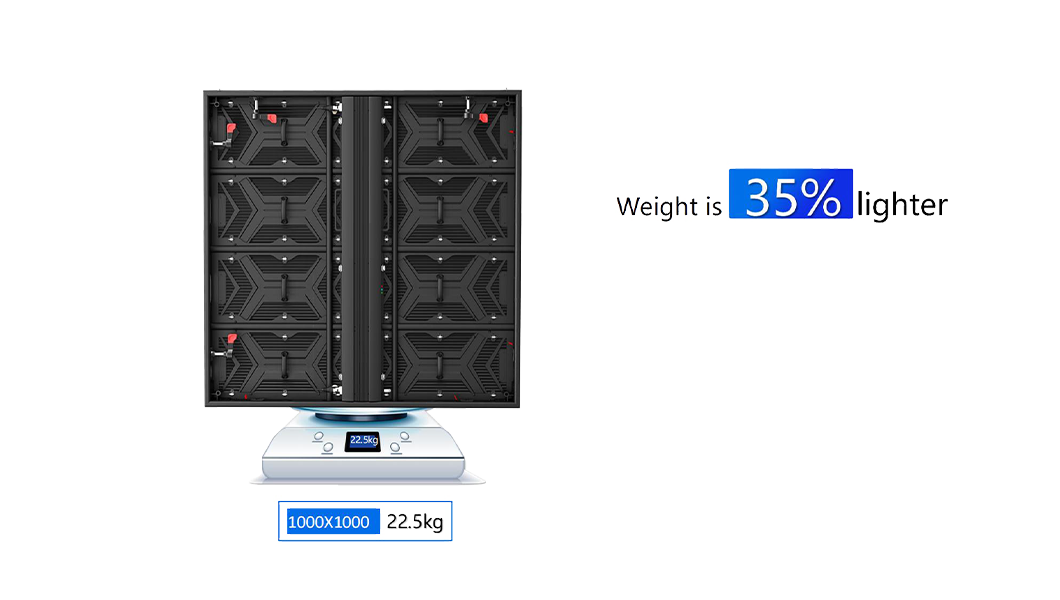

Ultra-Lightweight LED Cabinet (35% Lighter)
1000×1000mm LED cabinet weighs only 22.5kg, 35% lighter than conventional models. The lightweight design eases handling, reduces installation labor and lowers structural load requirements for various mounting setups.

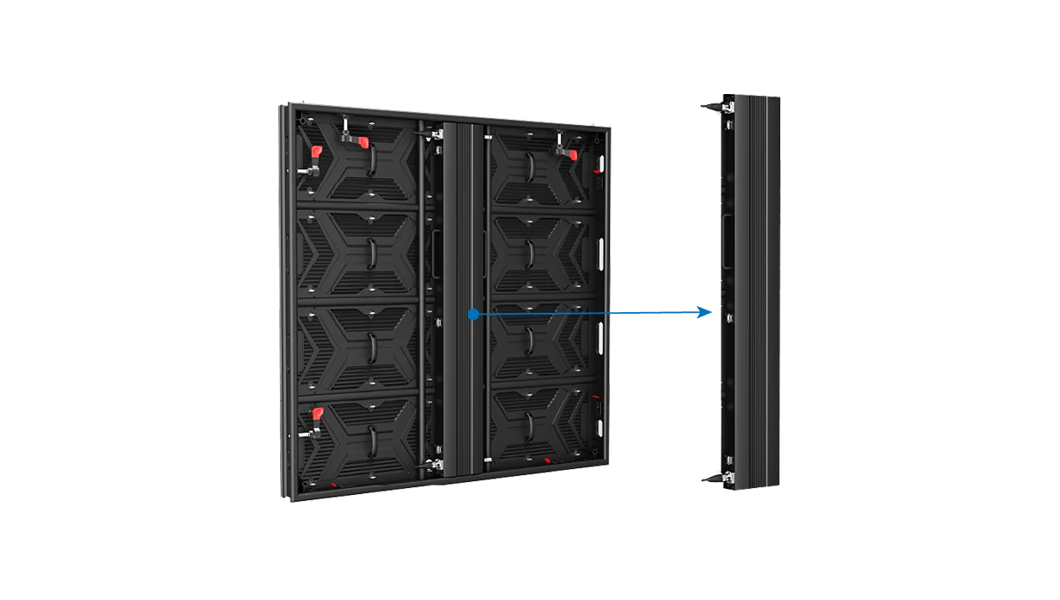

Ultra-Thin Cabinet with Rear-Pluggable Control Box
OA features ultra-slim cabinet profile and rear-pluggable control box design. The thin structure saves installation space, while hot-swappable rear access allows quick control unit replacement without disassembling the whole display.
Energy-Saving LED Panel (Up to 30% Power Saving)
EURYLED energy-saving LED panel consumes up to 30% less power compared to traditional LED displays. Lower energy usage reduces operating costs significantly while maintaining excellent image quality and bright vibrant visuals.

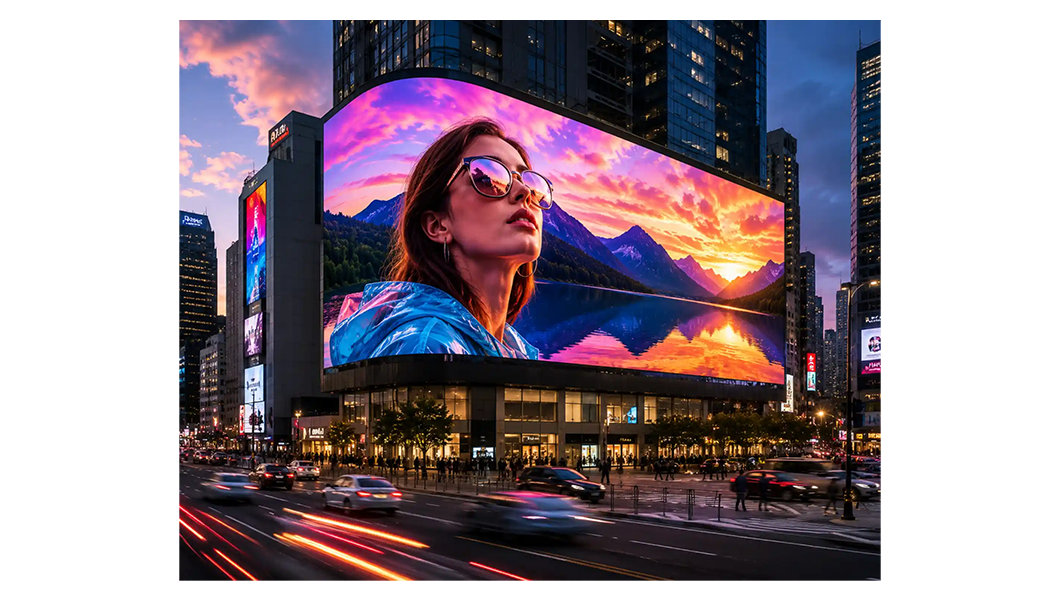

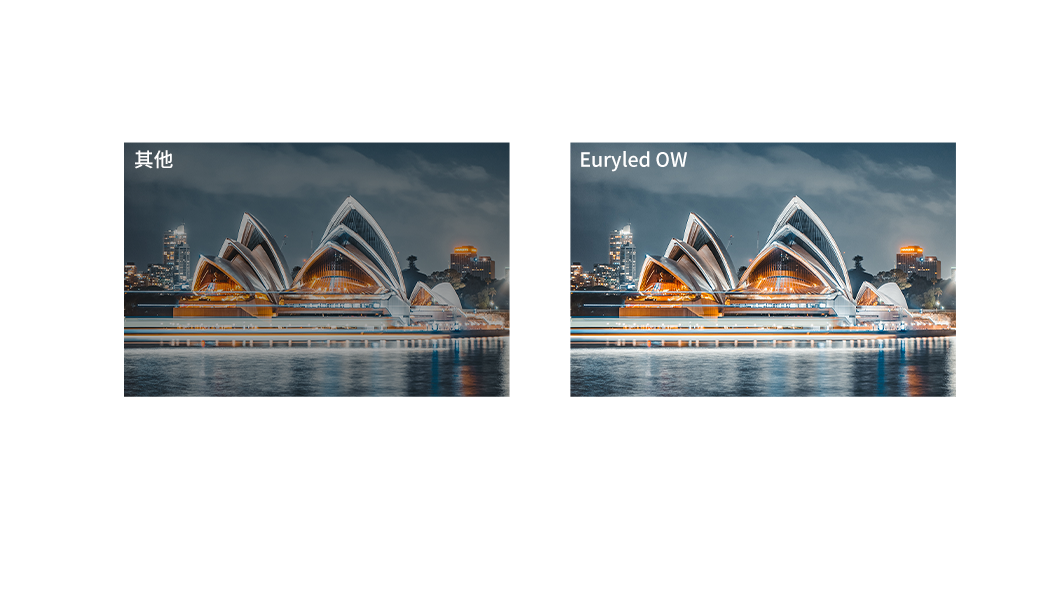

Superior Image Quality
EURYLED OA series delivers noticeably better image quality compared to conventional displays. Richer colors, sharper details and higher contrast create more vivid realistic visuals for an enhanced viewing experience.

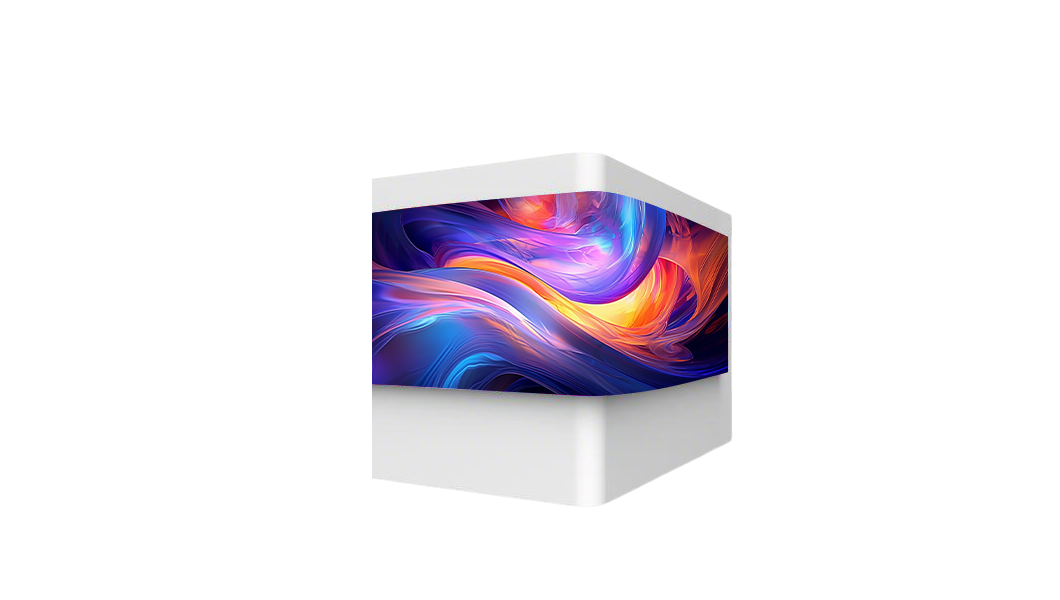

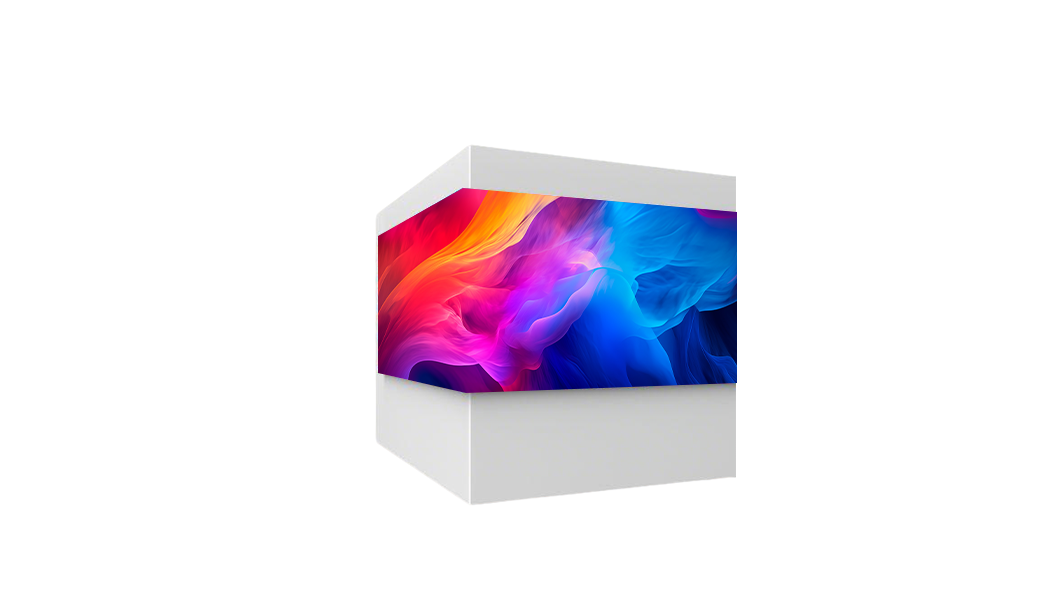

3D Right-Angle Corner LED Large Screen
Supports custom-made 3D curved corner large LED screens. Smooth seamless arc transitions create immersive stereoscopic visual effects, fully customizable to fit specific dimensions and creative design requirements for various commercial venues.
Customizable 3D Curved Corner LED Display
Supports 3D right-angle corner LED large screen installation. Sharp seamless 90° corners create striking stereoscopic visual effects, perfect for immersive brand displays, digital signage and creative commercial installations.
Specifications
| OA2.97 | OA3.91 | OA4.81 | OA6.25 | OA7.81 | OA10.416 | |
| Pixel pitch | 2.976 | 3.91 | 4.81 | 6.25 | 7.81 | 10.416 |
| SMD type | SMD1415 | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD2727 |
| Panel resolution（dots/sqm） | 112896 | 65,536 | 43,264 | 25,600 | 16,384 | 9,216 |
| Brightness（nits） | ≥5000 | ≥5500 | ≥5500 | ≥6000 | ≥6000 | ≥6000 |
| Driving Mode | 1/21 scale | 1/16 scale | 1/13 scale | 1/8 scale | 1/4 scale | 1/2 scale |
| Module dimension | 250x250 | 500X250 | 500X250 | 500X250 | 500X250 | 500X250 |
| Cabinet Material | Profile aluminum | Profile aluminum | Profile aluminum | Profile aluminum | Profile aluminum | Profile aluminum |
| Panel size（mm） | 1000x500 / 500x1000 | 1000x500 / 500x1000 | 1000x500 / 500x1000 | 1000x500 / 500x1000 | 1000x500 / 500x1000 | 1000x500 / 500x1000 |
| Protective Grade | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
| Maintenance mode | Front & Rear | Front & Rear | Front & Rear | Front & Rear | Front & Rear | Front & Rear |
| Weight of panel (kg/㎡) | 23 | 23 | 23 | 23 | 23 | 23 |
| Refresh rate | 7680 | 7680 | 7680 | 7680 | 7680 | 7680 |
| Viewing angle（V/H） | 140°/ 140° | 140°/ 140° | 140°/ 140° | 140°/ 140° | 140°/ 140° | 140°/ 140° |
| Max power consumption（W/m2） | 600-800 | 600-800 | 600-800 | 600-800 | 600-800 | 600-800 |
| Avg. power consumption（W/m2） | 100-200 | 100-200 | 100-200 | 100-200 | 100-200 | 100-200 |
| Input Voltage (AC) | 100V ~ 240V | 100V ~ 240V | 100V ~ 240V | 100V ~ 240V | 100V ~ 240V | 100V ~ 240V |
| * Specifications and photos are subject to change without prior notice. | ||||||
