FX Series
Support creative customization
Easy magnet connection
Mobile/Computer control & play
7680 Refresh & high grayscale
Product Features
-
7680HZ
-
Soft & flex
-
Support Customization
-
GOB solution
-
Wide view angle
-
Remote control
Production Introduction & Application

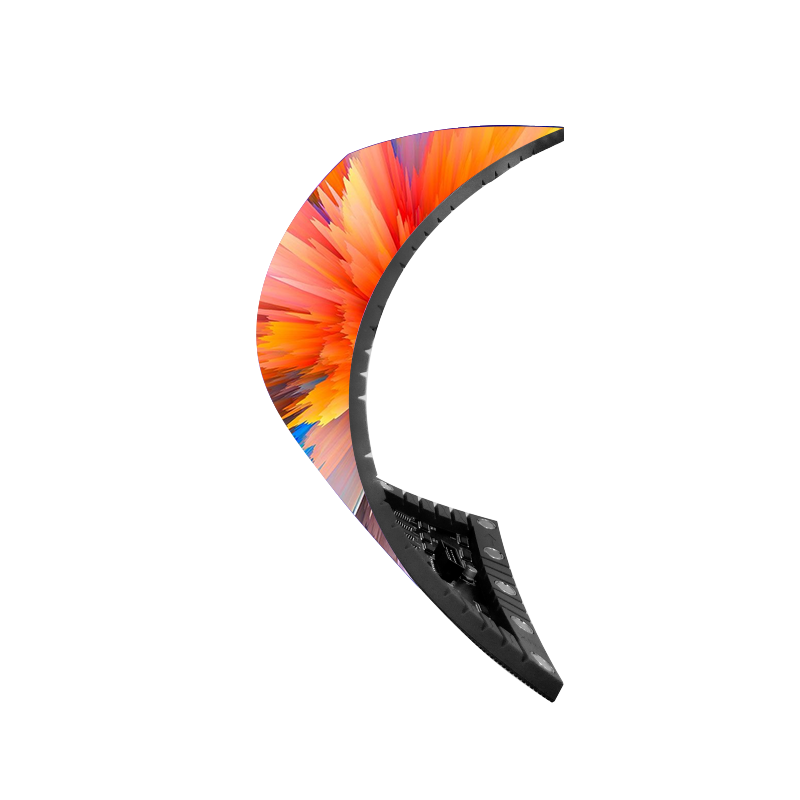

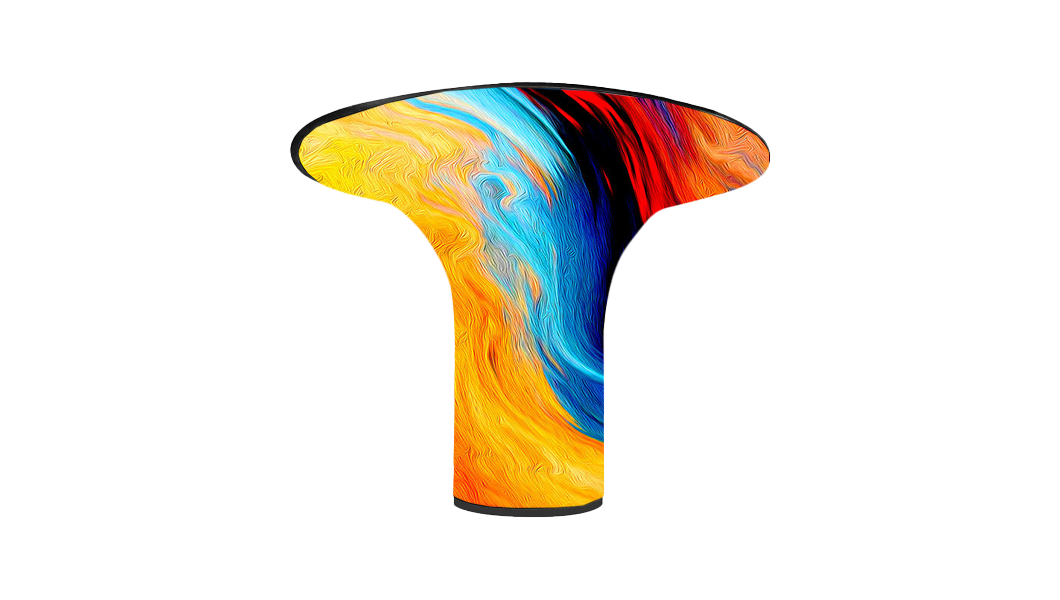

EURYLED Ultra-flexible soft LED module featuring highly bendable pliable construction. It can be freely curved, rolled and custom-shaped to seamlessly conform to any irregular or curved surfaces, perfectly suited for creative art installations, cylindrical displays, architectural lighting and various custom indoor commercial visual projects.

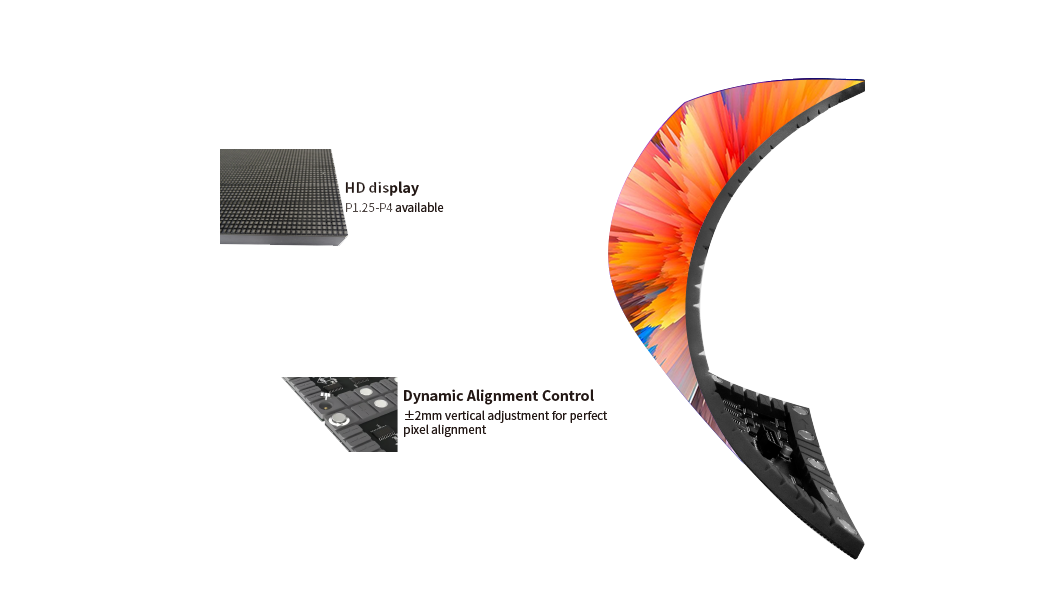

HD Flexible LED Module (P1.25-P4)
Flexible LED module with HD display, P1.25-P4 pixel pitches available. Features dynamic alignment control with ±2mm vertical adjustment for precise pixel alignment, ideal for various curved creative display installations.

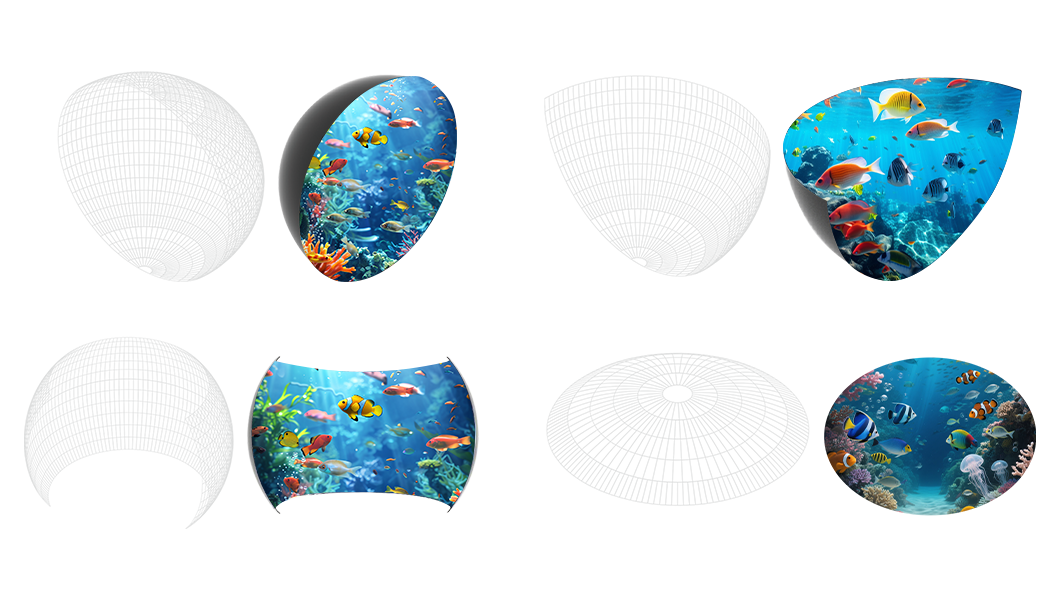

Concave & Convex Flexible LED Module
Flexible LED module supporting both concave and convex curving for creative flexibility. Equipped with flat cables for easy installation and pin header protection during transportation, ideal for diverse curved display designs.

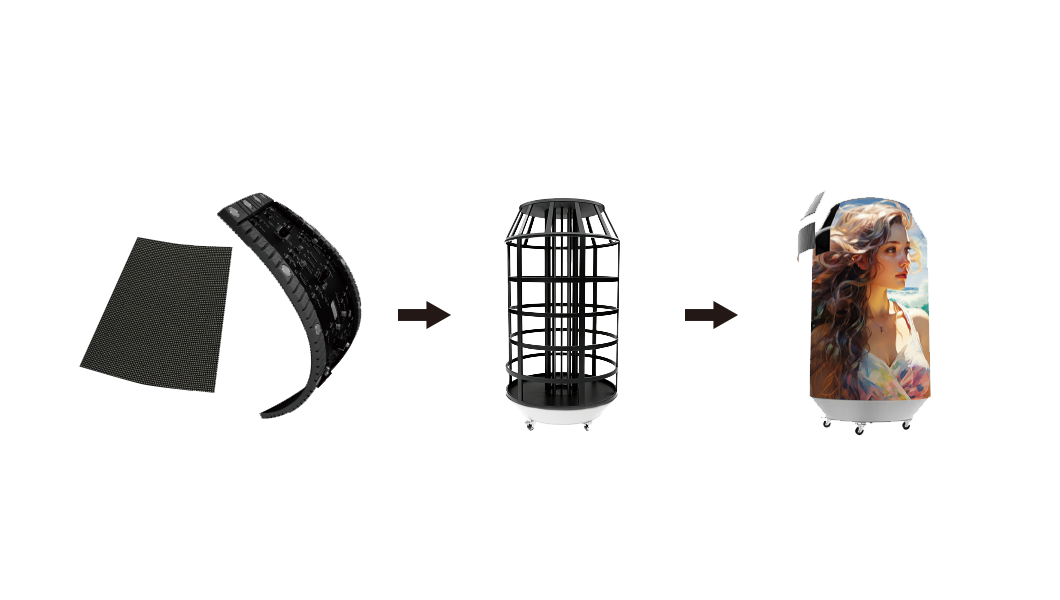

Custom Shape LED Display with Soft Modules
Special-shaped and flexible soft modules enable fully customizable LED displays in any form. Shown here as a creative soda can design, perfect for brand displays, retail window decorations, art installations and unique advertising setups.

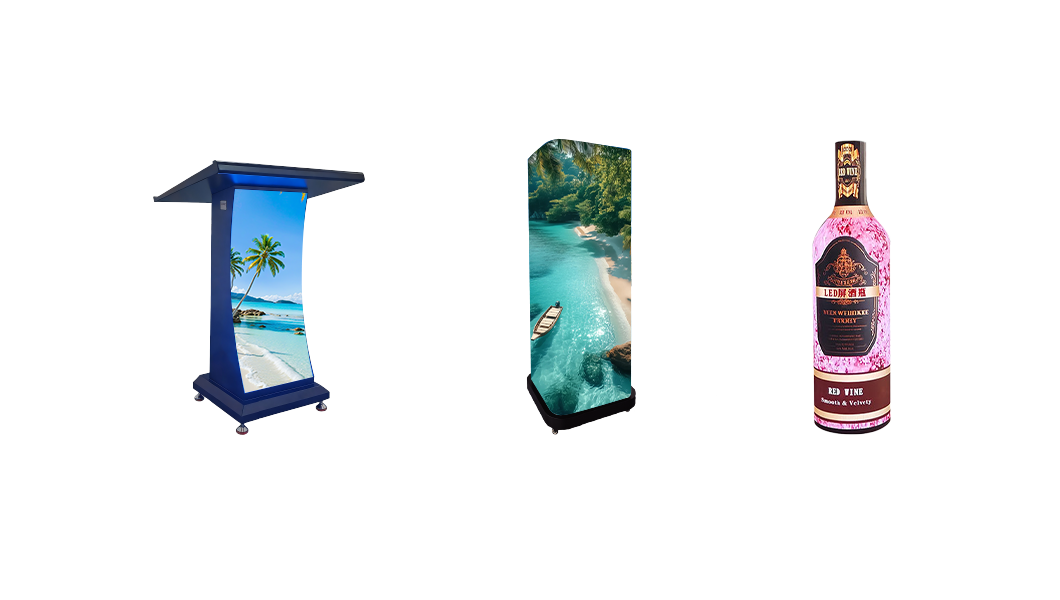

Flexible LED Poster Display
Flexible bendable LED poster display that can be curved into various shapes. Slim lightweight design delivers vibrant digital content, ideal for retail stores, brand promotions, exhibitions and creative indoor advertising applications.

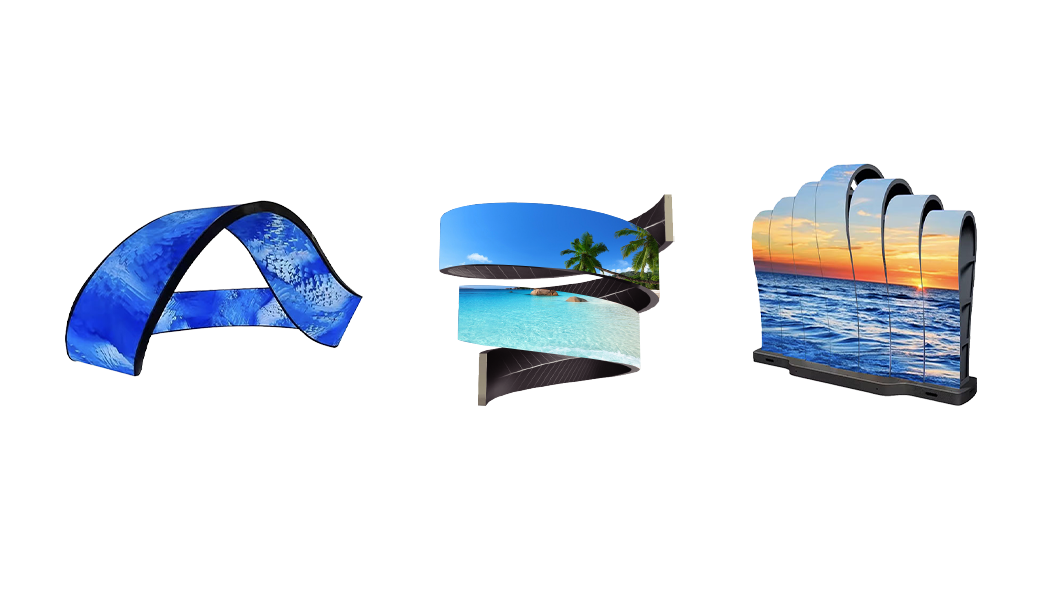

Creative Shapes-Mobius Strip
Ultra-soft flexible LED display that can be formed into various creative shapes including arches, spirals and waves. Unlimited shaping possibilities enable stunning custom visual installations for retail, exhibitions, events and brand activation displays.
Creative Shapes-LED Tree
Creative tree-shaped LED display with unique artistic design. Customizable in size and shape, it creates eye-catching decorative visual effects ideal for shopping malls, holiday events, brand exhibitions and themed entertainment venues.

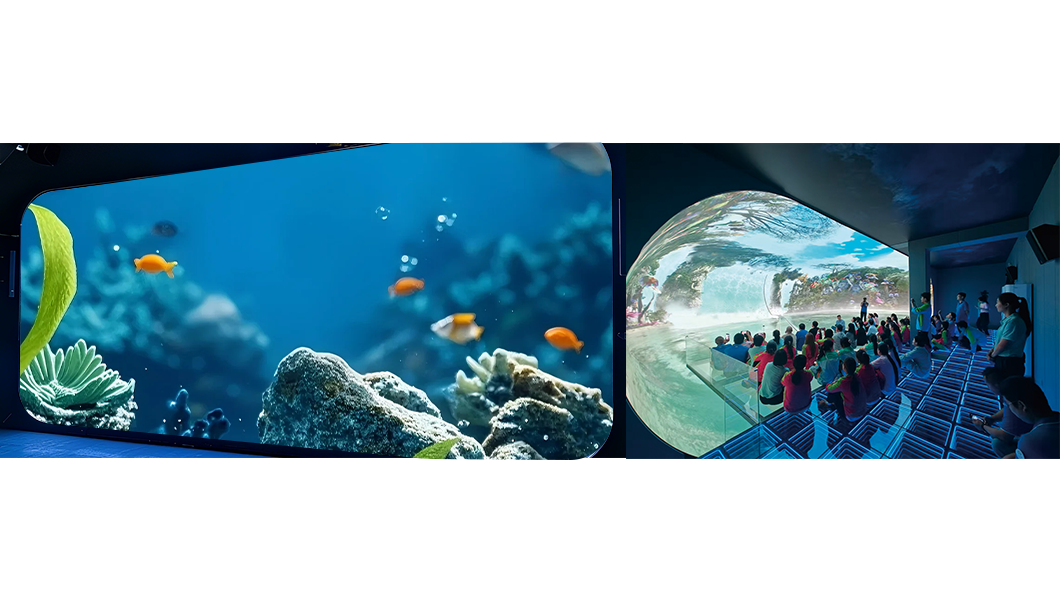

Creative Shapes-Immersive Room Display
Fully immersive LED display environment combining curved wall and floor screens. It wraps viewers in stunning 360° visuals, perfect for theme parks, science museums, immersive exhibitions, virtual reality experiences and interactive entertainment venues.
Creative Shapes-LED Dome
Curved dome-shaped LED display designed for ceiling installations. It creates immersive overhead visual effects that envelop the viewing space, ideal for planetariums, museums, exhibition halls, hotel lobbies and high-end themed entertainment venues.
Specifications
| Model | FX1.25 | FX1.56 | FX1.8 | FX2.5 | FX3 | FX4 |
| Pixel Pitch(mm) | 1.25 | 1.56 | 1.86 | 2.5 | 3.076 | 4 |
| Pixel Matrix Per Sq.m | 640000 | 406210 | 288906 | 160000 | 105625 | 62500 |
| Pixel Configuration | SMD1010 | SMD1515 | SMD1515 | SMD1515 | SMD1515 | SMD2121 |
| Brightness (nits) | 800 | 800 | 800 | 900 | 900 | 900 |
| Scan | 1/48 | 1/43 | 1/43 | 1/32 | 1/26 | 1/20 |
| Module Dimension | 320x160mm | 320x160mm | 320x160mm | 320x160mm | 320x160mm | 320x160mm |
| Module Material | Silicon Rubber Soft Base | Silicon Rubber Soft Base | Silicon Rubber Soft Base | Silicon Rubber Soft Base | Silicon Rubber Soft Base | Silicon Rubber Soft Base |
| Module Weight | 0.175kg | 0.175kg | 0.175kg | 0.175kg | 0.175kg | 0.175kg |
| Power Con. (Max / Avg) | 480 / 180 w/sq.m | 480 / 180 w/sq.m | 480 / 180 w/sq.m | 480 / 180 w/sq.m | 480 / 180 w/sq.m | 480 / 180 w/sq.m |
| Service Access | Front | Front | Front | Front | Front | Front |
| Refresh Rate (HZ) | 7680 | 7680 | 7680 | 7680 | 7680 | 7680 |
| Grey Scale (bit) | 16 | 16 | 16 | 16 | 16 | 16 |
| Viewing Angle (H/V) | 140 / 140 | 140 / 140 | 140 / 140 | 140 / 140 | 140 / 140 | 140 / 140 |
| IP Rate | IP43 | IP43 | IP43 | IP43 | IP43 | IP43 |
| Operation Temperature | -20° ~ 50° | -20° ~ 50° | -20° ~ 50° | -20° ~ 50° | -20° ~ 50° | -20° ~ 50° |
| Input Voltage (AC) | 100V / 240V | 100V / 240V | 100V / 240V | 100V / 240V | 100V / 240V | 100V / 240V |
| * Specifications and photos are subject to change without prior notice. | ||||||
