COB Series

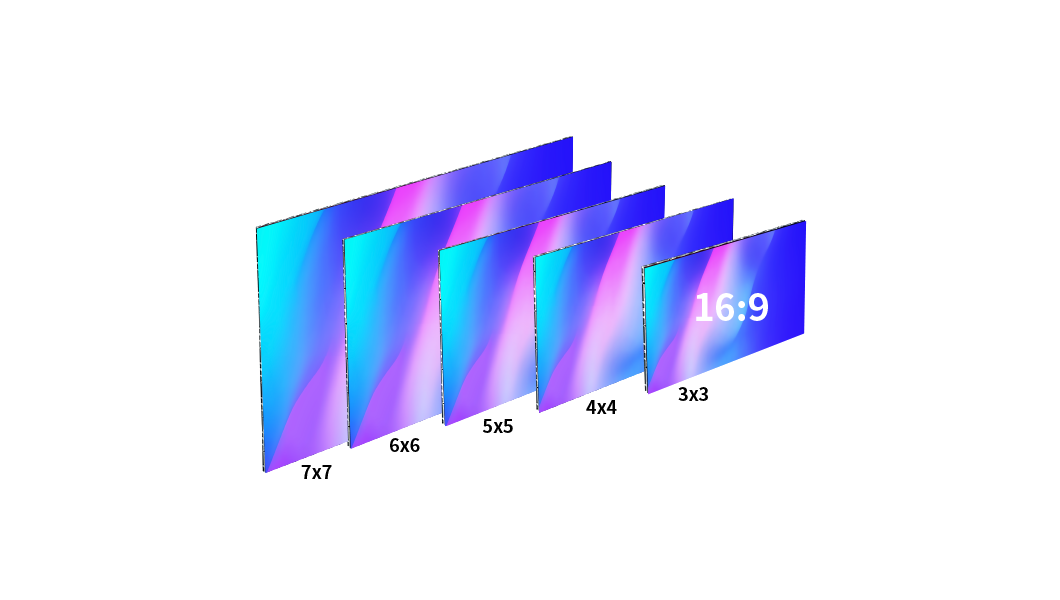

Seamless stitching 2K/4K/8K screen
Ultra high contrast & professional wide color gamut
Power & signal dual backup
Front maintenance & front installation
Product Features
-
7680HZ
-
Ultra clear
-
Dual Backup
-
Light & thin
-
Easy install
-
Video Conference
Production Introduction & Application

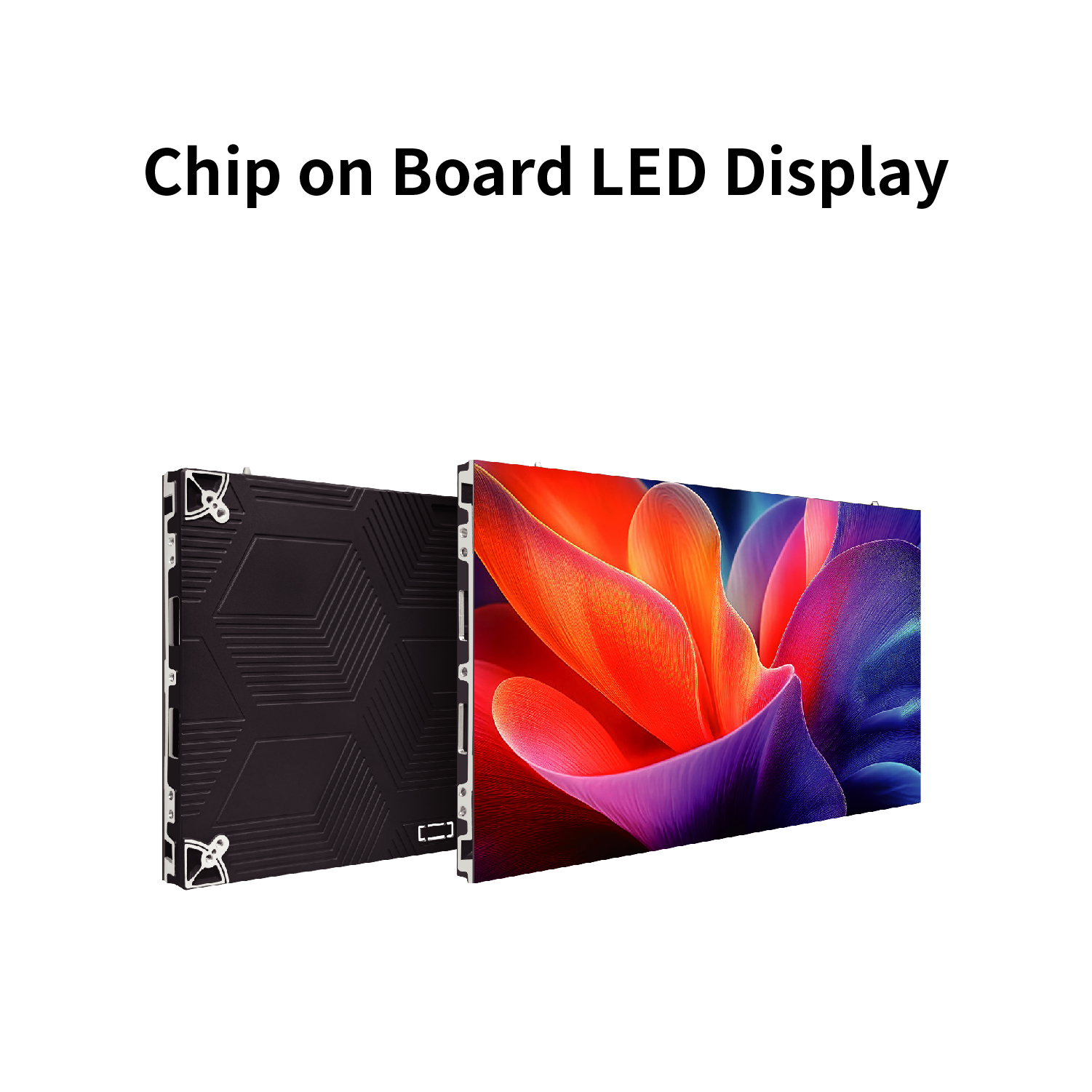

Premium COB LED display technology supporting 2K, 4K and 8K ultra-high resolution. Delivers exceptional image clarity and fine pixel density, ideal for high-end studios, control rooms and premium commercial displays.

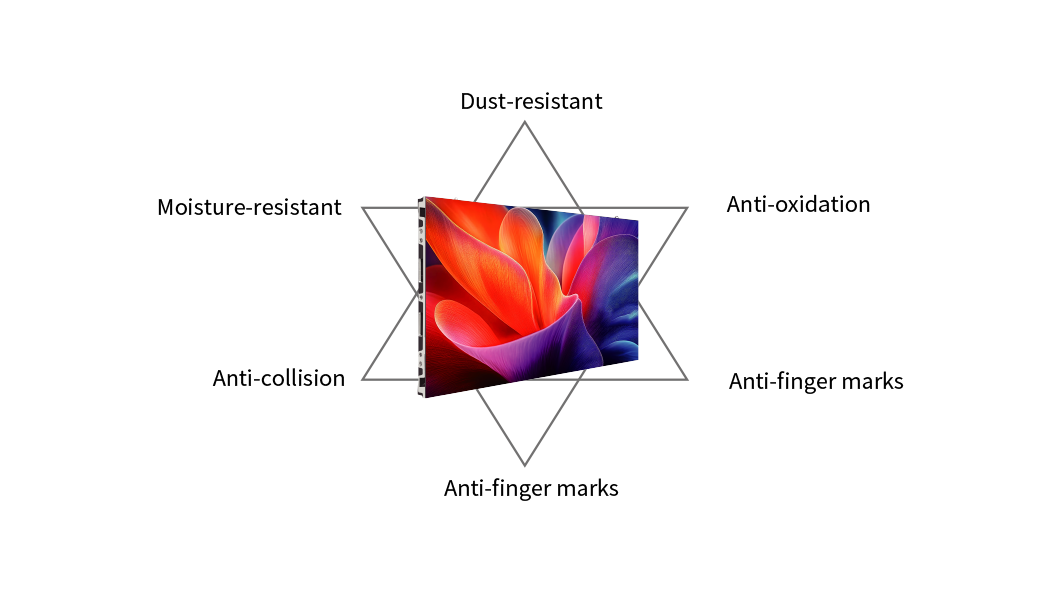

Multi-Protection COB LED Display

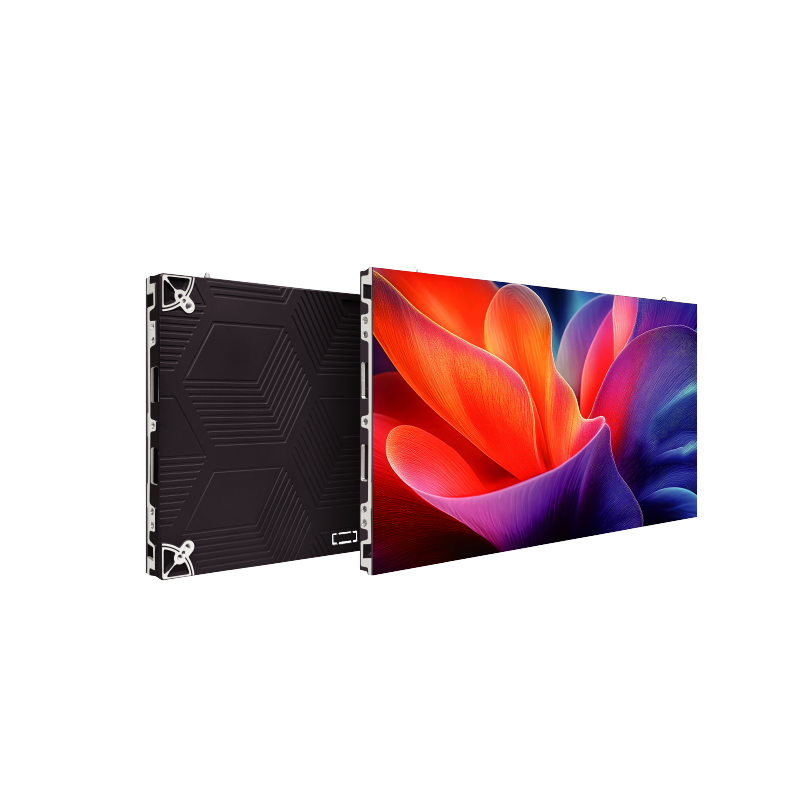

High-quality EP series LED cabinet with durable aluminum structure. Lightweight design enables fast assembly and easy transportation, ideal for stage rental and various event applications.
Euryled Fully Flip Chip Technology (No Wires)
Built with fully flip chip architecture, no welding wires required. Compared to conventional wire-bonded chips, it offers better heat conduction, higher mechanical strength and more stable long-term operation.

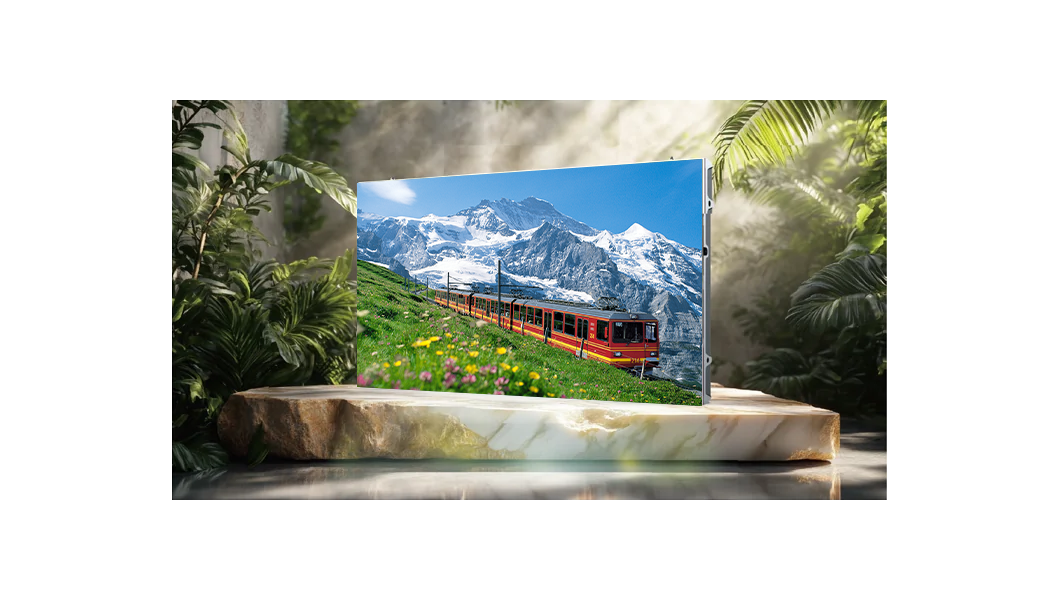

Ultra-High Definition Visual Quality
Euryled COB delivers stunning ultra-high definition image quality with fine pixel pitch. Crisp details, vivid colors and smooth gradients create immersive viewing experiences for high-end commercial and professional display applications.

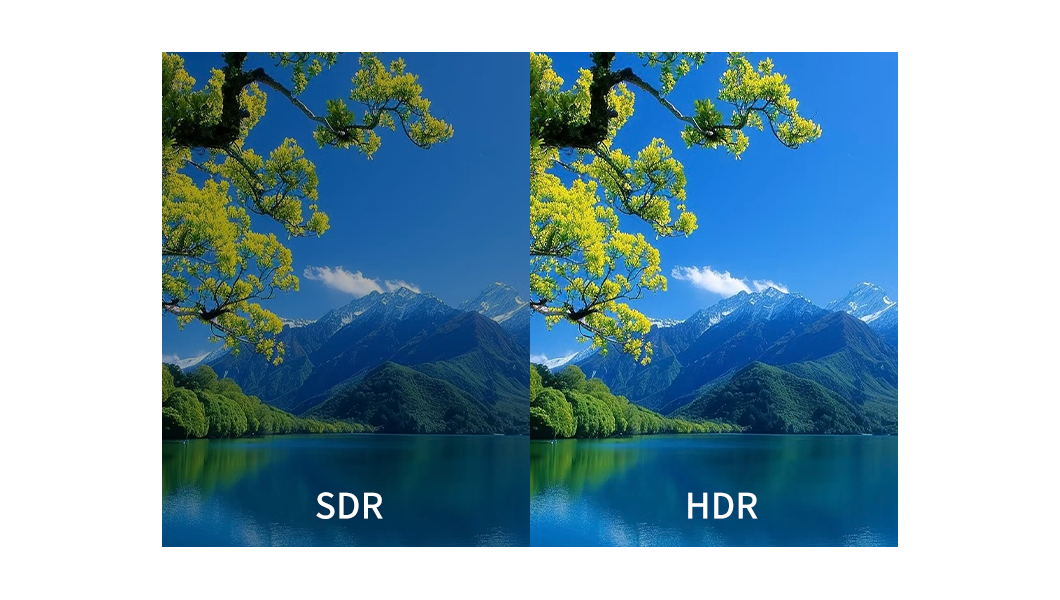

HDR High Dynamic Range Display
Supports HDR high dynamic range technology, delivering brighter highlights and deeper shadows compared to standard SDR. Richer color details and enhanced contrast create more realistic lifelike visual experiences.
170° Ultra-Wide Viewing Angle COB Screen
Equipped with an expansive 170° viewing angle, Euryled COB technology ensures uniform brightness and true color reproduction across all viewing positions. No color shift or brightness loss even when viewed from extreme side angles.
High Flatness COB Display Surface
EURYLED precision-engineered COB panel delivers outstanding surface flatness. The perfectly even, gapless surface ensures consistent image quality across the entire screen, presenting a clean professional look for premium applications.

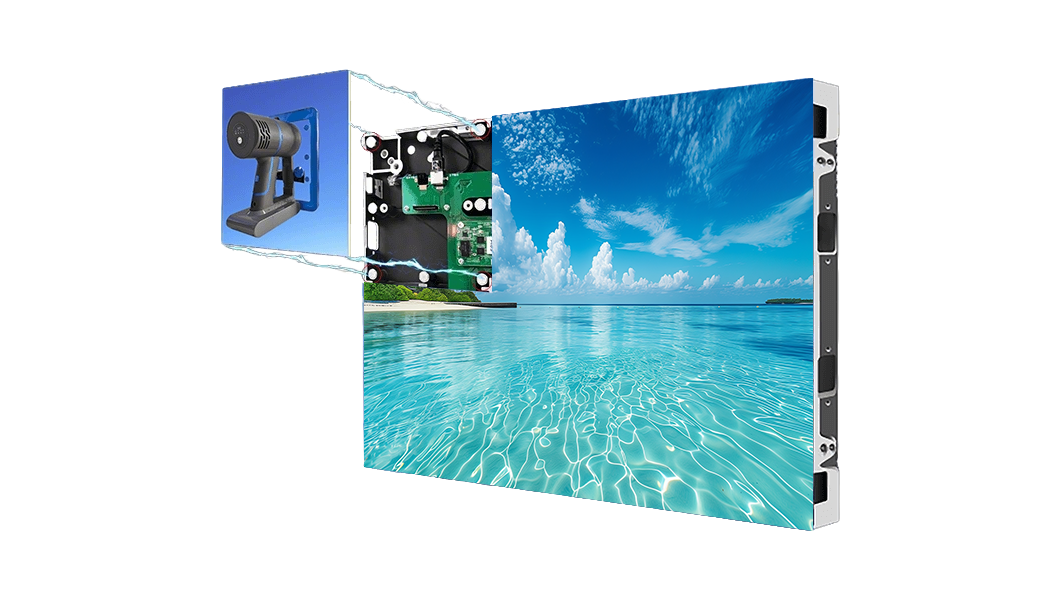

Magnetic Front Maintenance Design
It adopts magnetic adsorption front maintenance structure. Modules can be quickly detached and reinstalled from the front without tools, greatly simplifying on-site repair and replacement work.

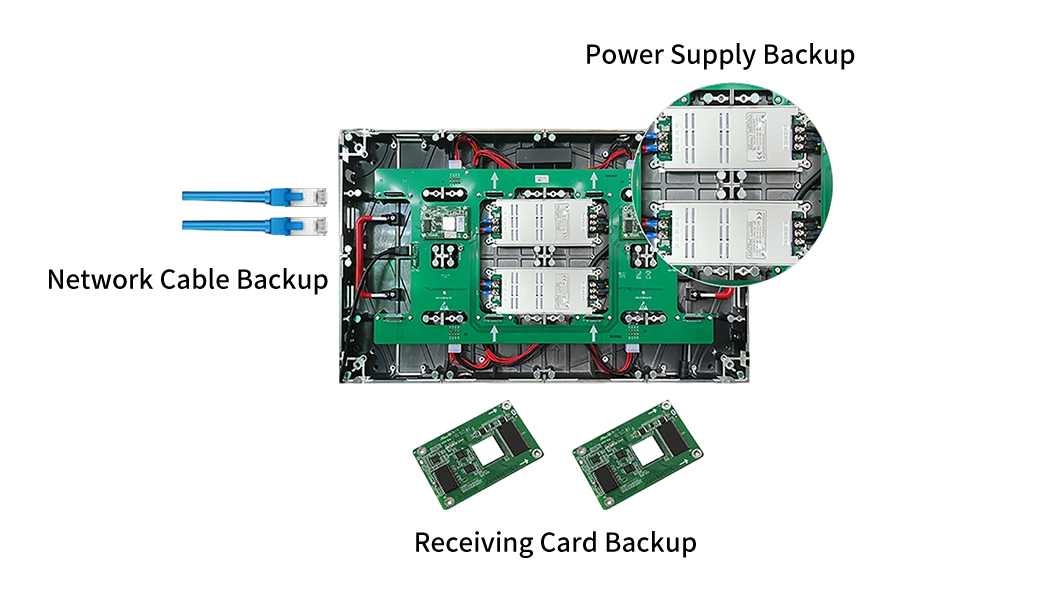

Dual Backup Power & Signal (Optional)
Optional dual backup system for both power supply and signal transmission. Redundant design ensures uninterrupted display operation even if one circuit fails, critical for high-importance events and reliable rental applications.
Specifications
| COB | COB 0.9 | COB1.2 | COB1.5 | COB1.8 |
| Pixel Pitch(mm) | 0.9375 | 1.25 | 1.5625 | 1.875 |
| Brightness Calibrated | 600nits | 700nits | 800nits | 800nits |
| Pixel Matrix Per Sq.m | 1,137,778 | 640,000 | 409,600 | 284,444 |
| Scan | 1/60 | 1/60 | 1/48 | 1/45 |
| Cabinet Material | Die Casting Aluminum | Die Casting Aluminum | Die Casting Aluminum | Die Casting Aluminum |
| Module Dimension | 150x168.75mm | 150x168.75mm | 150x168.75mm | 150x168.75mm |
| Cabinet Dimension | 600x337.5×28mm | 600x337.5×28mm | 600x337.5×28mm | 600x337.5×28mm |
| Cabinet Resolution | 640x360 | 480x270 | 385x216 | 320x180 |
| Viewing Angle (H/V) | 170°/170° | 170°/170° | 170°/170° | 170°/170° |
| Power Con.(W/㎡) (Max / Avg) | 550W/180W | 650W/200W | 650W/ 200W | 650W/ 200W |
| Cabinet Weight | 3.78KG | 3.78KG | 3.78KG | 3.78KG |
| Service Access | Front | Front | Front | Front |
| Refresh Rate (HZ) | 7680 | 7680 | 7680 | 7680 |
| Grey Scale (bit) | 18 | 18 | 16 | 16 |
| IP Rate | IP65/IP40 | IP65/IP40 | IP65/IP40 | IP65/IP40 |
| Operation Temperature | -20℃ ~ +80°℃ | -20℃ ~ +80°℃ | -20℃ ~ +80°℃ | -20℃ ~ +80°℃ |
| Input Voltage (AC) | 110V-220V | 110V-220V | 110V-220V | 110V-220V |
| * Specifications and photos are subject to change without prior notice. | ||||
