DJ Poster
3D Video playback for immersive effects
HD high-refresh visuals
Built-in storage cabinets and sockets
Flight case package
Product Features
-
7680HZ
-
Remote control
-
GOB solution
-
Front & rear access
-
Ultra wide angle
-
Support Customization
Production Introduction & Application

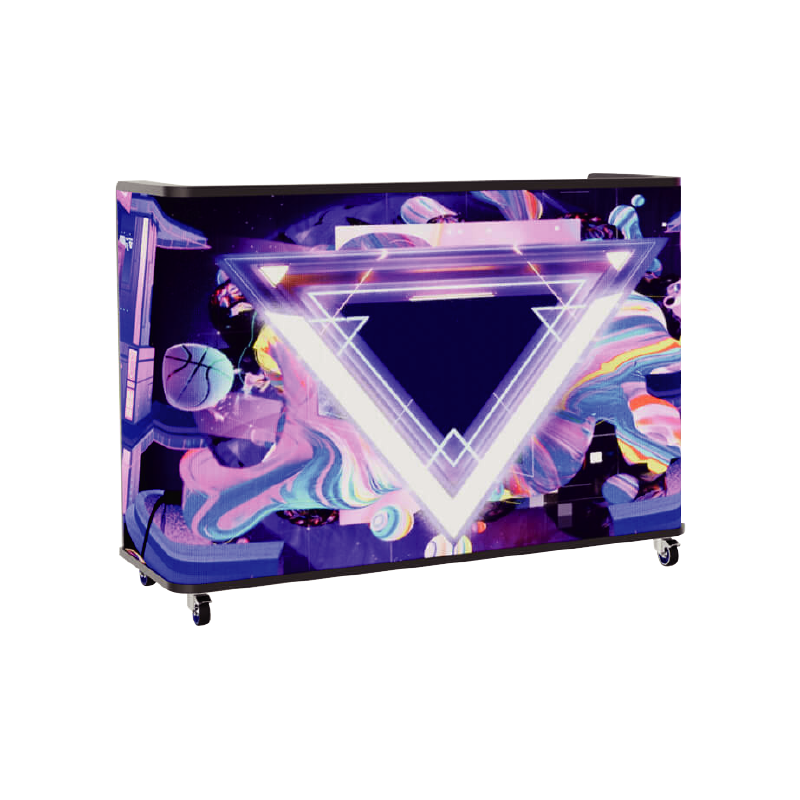

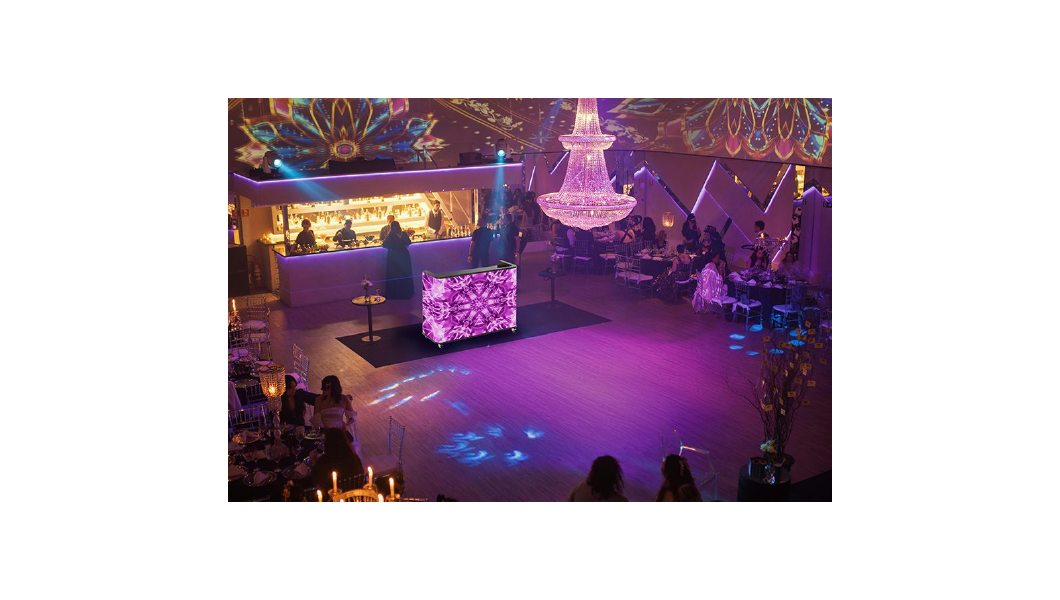

Custom-designed LED display built exclusively for professional DJ booths, with both curved and semi-circular shapes available. It delivers stunning dynamic visuals that perfectly sync with music rhythms, creating an immersive party atmosphere ideal for nightclubs, bars, music festivals, parties, concerts and all kinds of live entertainment venues.

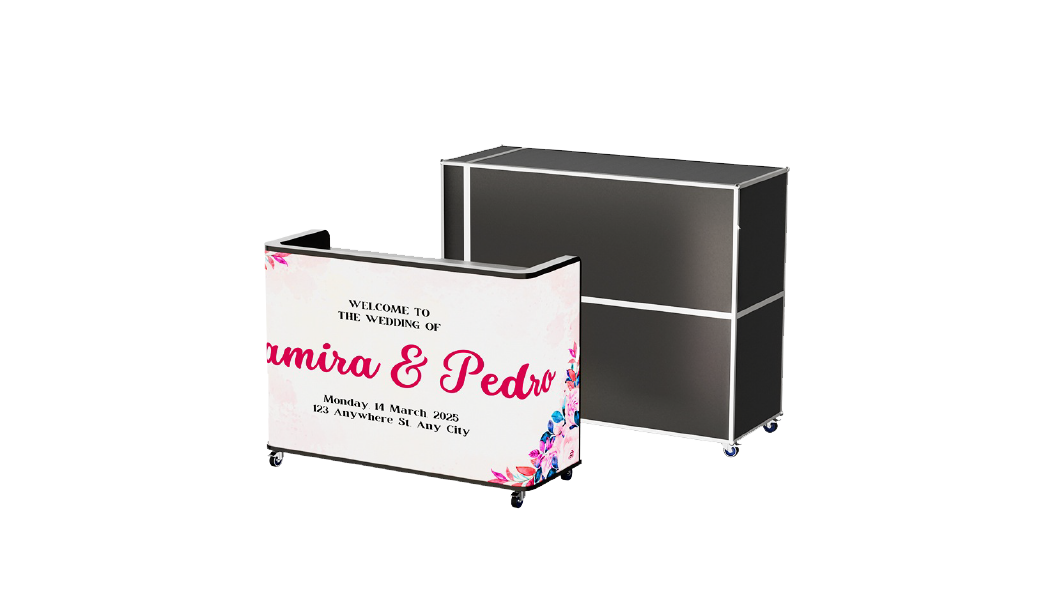

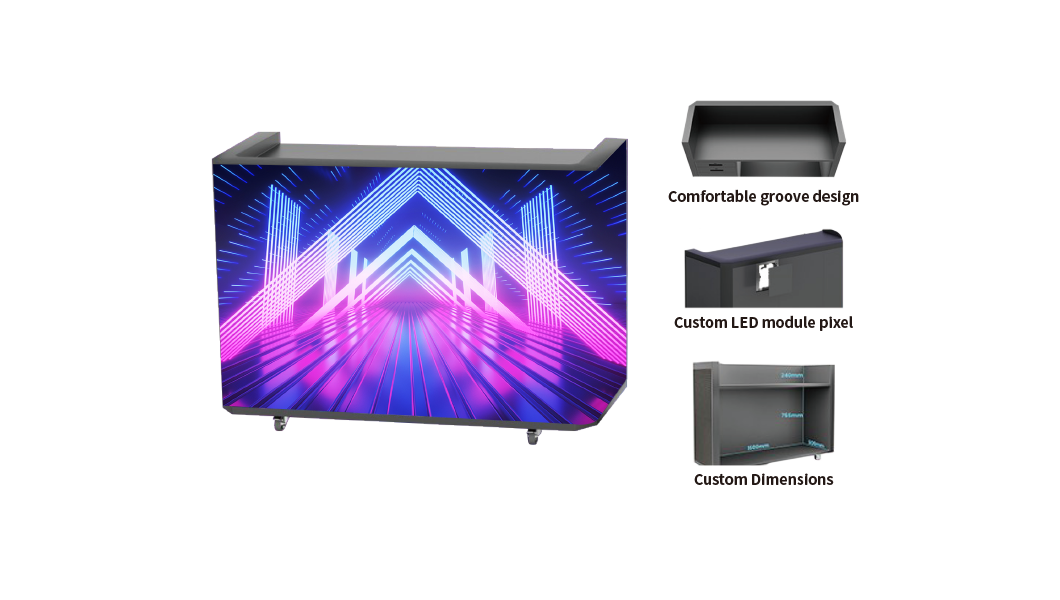

DJ Booth Display / Reception Desk Display
EURYLED LED booth features a 2240×960mm display area. All outer shapes and overall dimensions can be fully customized to fit diverse venues and event decoration demands.

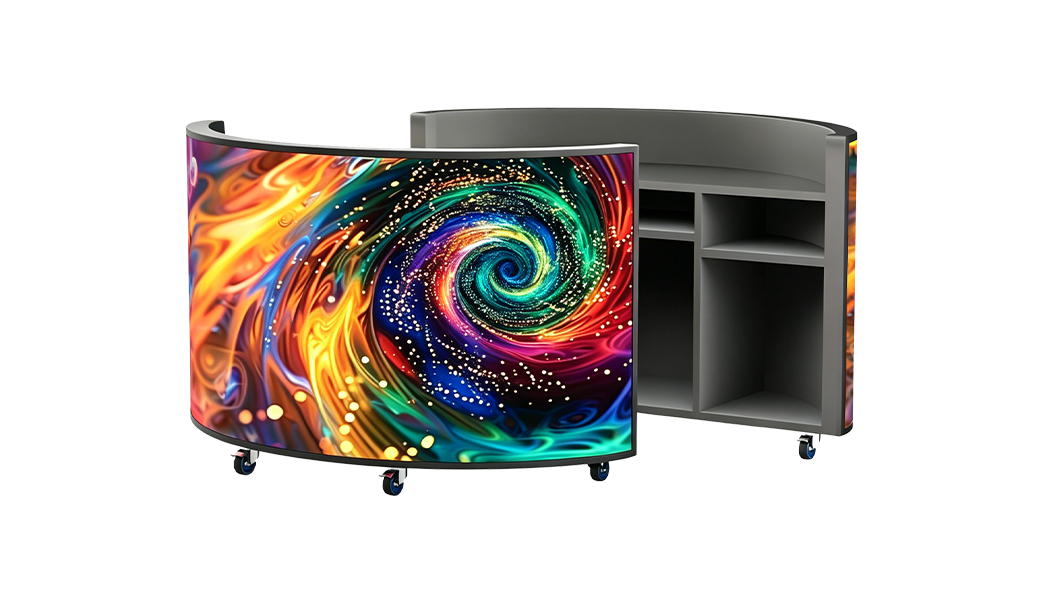

Optional Semi-Circular LED DJ Booth
EURYLED semi-circular LED DJ booth is an alternative choice. It comes with built-in storage compartments and movable casters, delivering immersive curved display effects for bars and live party events.

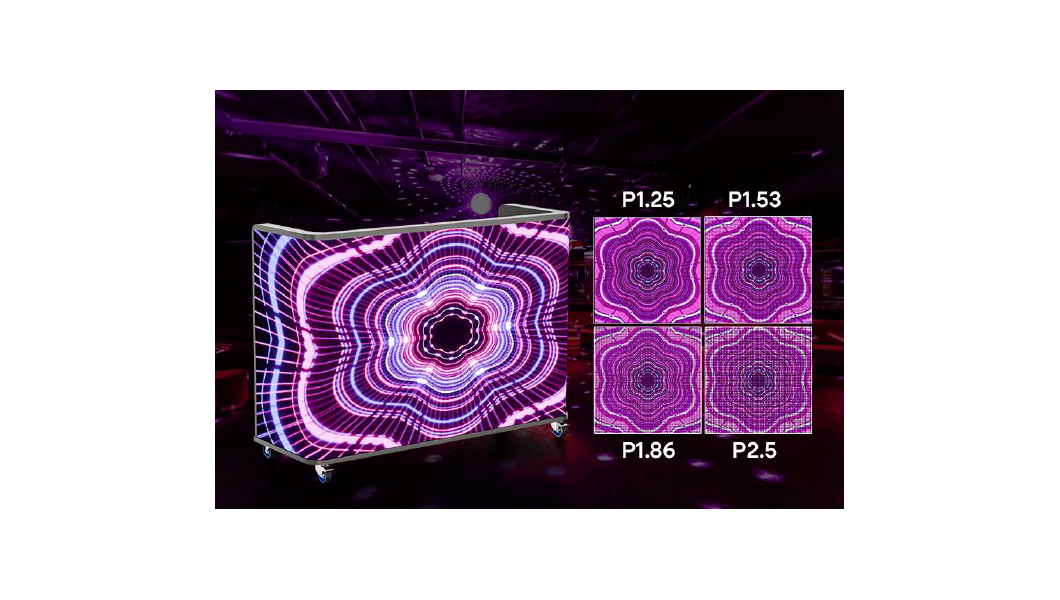

Optional Pixel Pitch for Curved DJ LED Booth
The curved DJ LED booth is available with P1.25, P1.53, P1.86 and P2.5 pixel pitches. Different resolutions meet various clarity needs for bars, parties and live performance scenes.

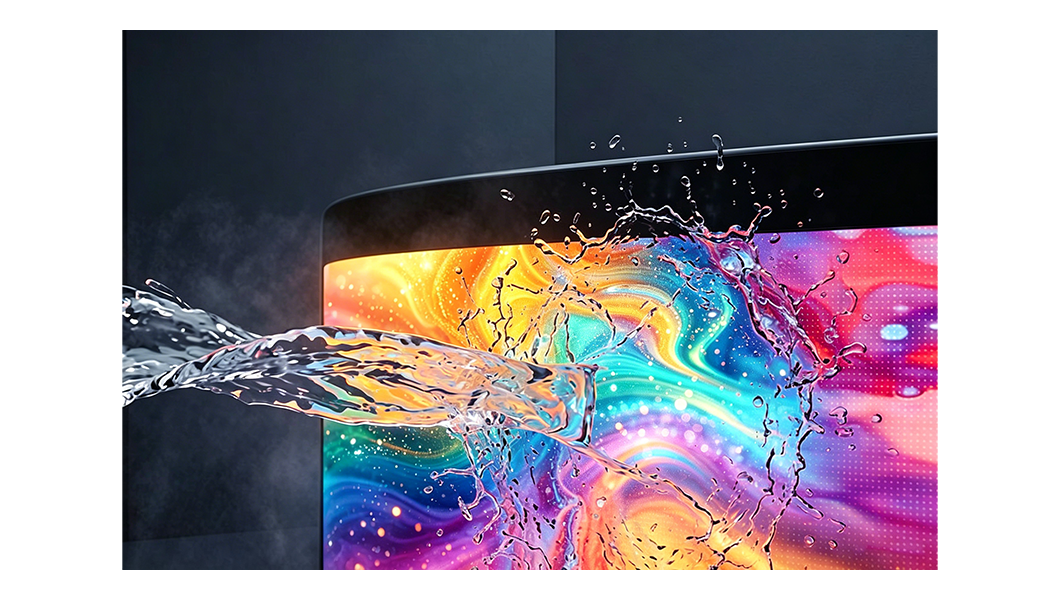

GOB Coating & Waterproof Performance
The screen adopts advanced GOB coating technology with reliable waterproof property. It resists splashing water and moisture, perfectly fit for humid bars, clubs and entertainment venues.

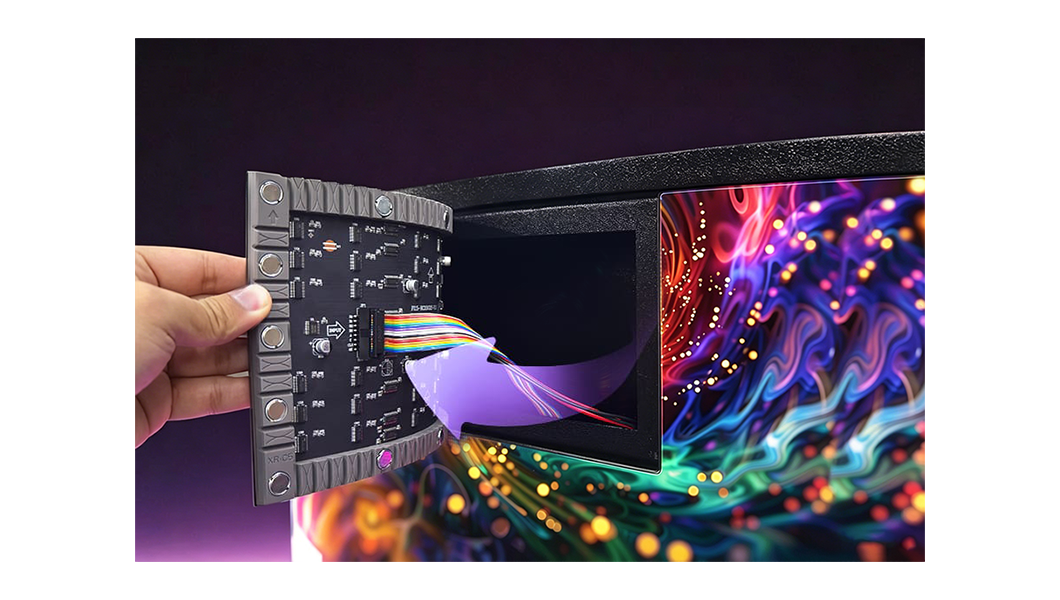

Magnetic Front Maintenance Structure
Equipped with magnetic adsorption front maintenance design. Modules are fixed by strong magnets, easy to take off and install from front for fast inspection and replacement.
Flight Case Packaging for LED Booth
Matching dedicated flight case packaging is available. The hard protective case protects the booth fully during transit, supporting convenient long-distance transportation and repeated use.

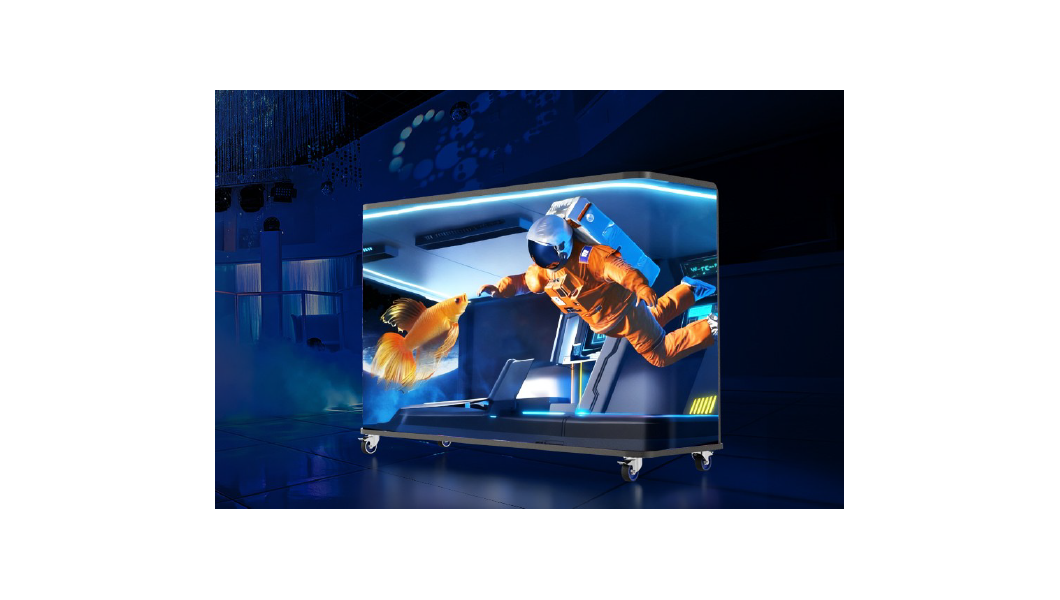

3D Video Playback for Immersive Visual Effects
It supports smooth 3D video playback, presenting vivid stereoscopic images. It delivers stunning immersive visual effects to enhance the unique display performance of the booth.

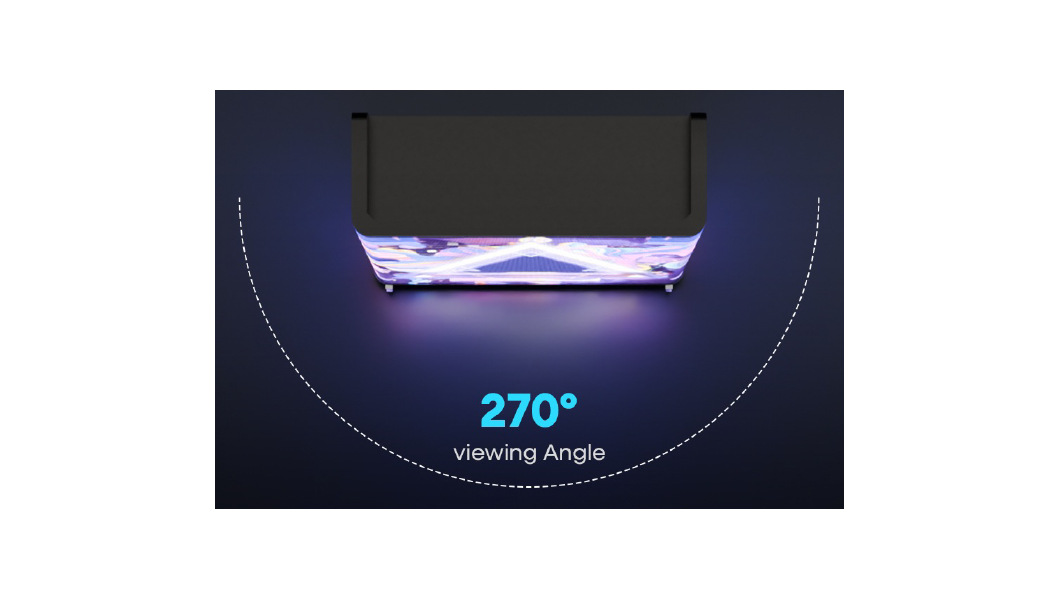

Curved Edge 270° Seamless Viewing Design
Adopts curved edge 270° seamless structure, breaking flat screen viewing limits. Uniform clear images can be seen from all surrounding angles without color distortion.

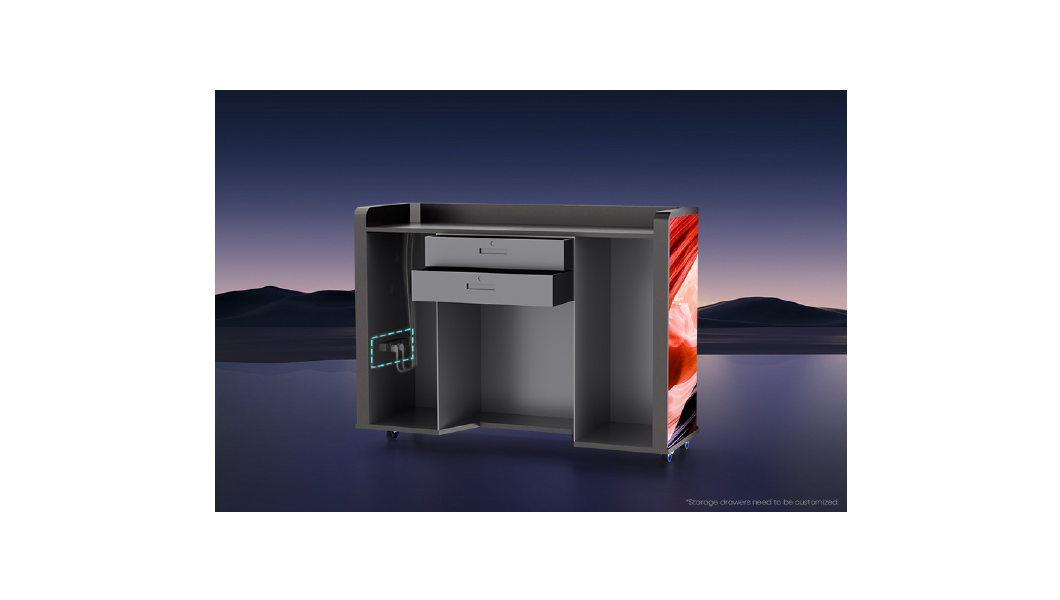

Built-in Storage Cabinets & Power Sockets
Features built-in storage cabinets and integrated power sockets. Neatly store equipment and accessories, with easy access to power supply for convenient on-site setup.

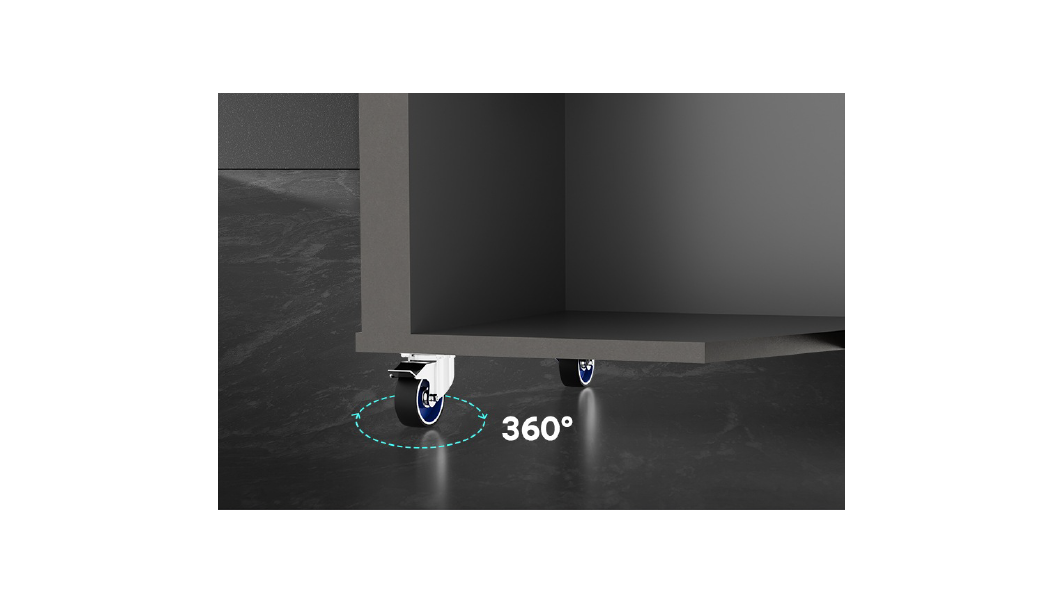

Mobile Universal Wheels Design
Equipped with mobile universal wheels, the booth can be moved and positioned easily. Flexible steering enables smooth venue-to-venue relocation, saving time and labor for event setup.
Specifications
| Model | FX1.25 | FX1.56 | FX1.8 | FX2.5 | FX3 | FX4 |
| Pixel Pitch(mm) | 1.25 | 1.56 | 1.86 | 2.5 | 3.076 | 4 |
| Pixel Matrix Per Sq.m | 640000 | 406210 | 288906 | 160000 | 105625 | 62500 |
| Pixel Configuration | SMD1010 | SMD1515 | SMD1515 | SMD1515 | SMD1515 | SMD2121 |
| Brightness (nits) | 800 | 800 | 800 | 900 | 900 | 900 |
| Scan | 1/48 | 1/43 | 1/43 | 1/32 | 1/26 | 1/20 |
| Module Dimension | 320x160mm | 320x160mm | 320x160mm | 320x160mm | 320x160mm | 320x160mm |
| Module Material | Silicon Rubber Soft Base | Silicon Rubber Soft Base | Silicon Rubber Soft Base | Silicon Rubber Soft Base | Silicon Rubber Soft Base | Silicon Rubber Soft Base |
| Module Weight | 0.175kg | 0.175kg | 0.175kg | 0.175kg | 0.175kg | 0.175kg |
| Power Con. (Max / Avg) | 480 / 180 w/sq.m | 480 / 180 w/sq.m | 480 / 180 w/sq.m | 480 / 180 w/sq.m | 480 / 180 w/sq.m | 480 / 180 w/sq.m |
| Service Access | Front | Front | Front | Front | Front | Front |
| Refresh Rate (HZ) | 7680 | 7680 | 7680 | 7680 | 7680 | 7680 |
| Grey Scale (bit) | 16 | 16 | 16 | 16 | 16 | 16 |
| Viewing Angle (H/V) | 140 / 140 | 140 / 140 | 140 / 140 | 140 / 140 | 140 / 140 | 140 / 140 |
| IP Rate | IP43 | IP43 | IP43 | IP43 | IP43 | IP43 |
| Operation Temperature | -20° ~ 50° | -20° ~ 50° | -20° ~ 50° | -20° ~ 50° | -20° ~ 50° | -20° ~ 50° |
| Input Voltage (AC) | 100V / 240V | 100V / 240V | 100V / 240V | 100V / 240V | 100V / 240V | 100V / 240V |
| * Specifications and photos are subject to change without prior notice. | ||||||
