What is a bus display and what does it do?

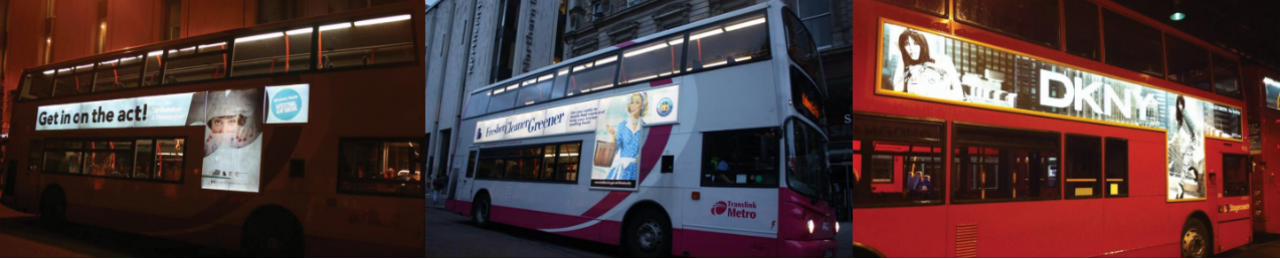

An LED Bus advertising screen is a digital display typically installed on the exterior of a bus.
Usage/Application: It's used to showcase advertisements, promotional content, or information to a wide audience.
These screens are made up of LED panels that provide high brightness and visibility, making them effective for outdoor advertising. They are a popular choice for advertising agencies and businesses looking to reach a broad audience as buses travel through various locations.
Product:

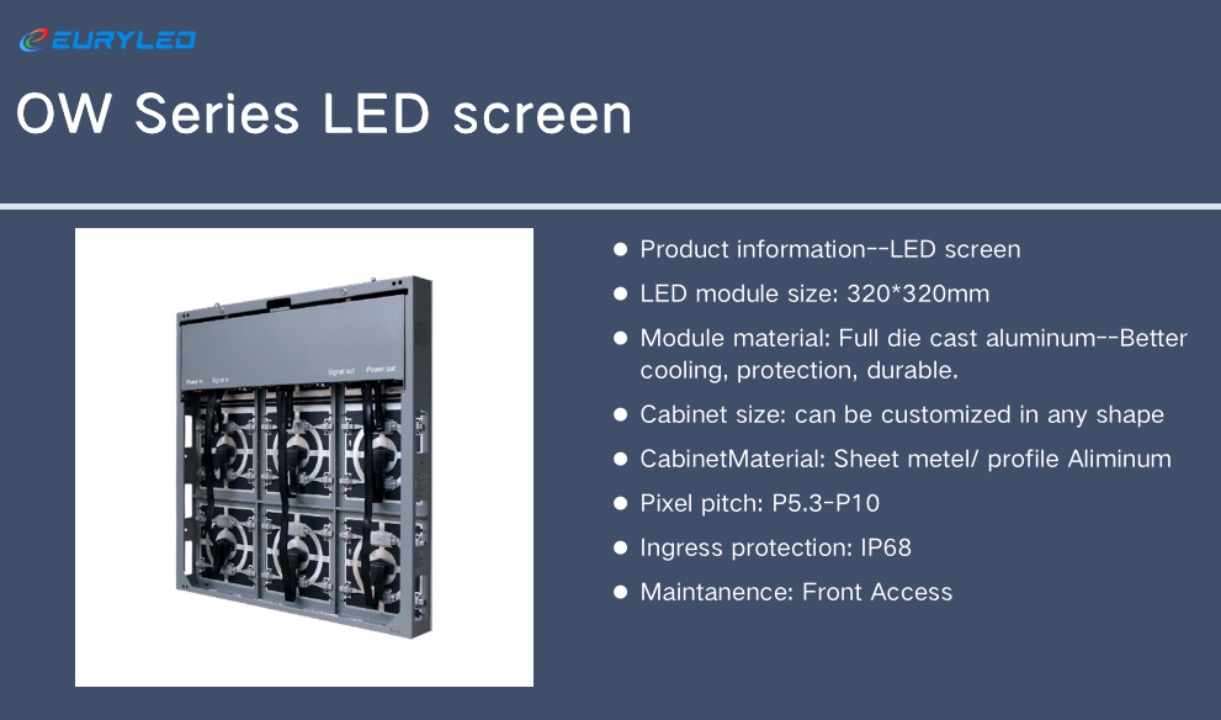

OW Series All Weather Resistance IP68 Display
Product video:
Product Features:
Front & Back Installation and Service
IP68 Weather Resistance
Max 11,000nits Brightness
Common Cathode Power Saving Solution Available
Software:
Remote control and synchronization of content based on the bus's location, meeting the requirement of playing different content on different bus routes.

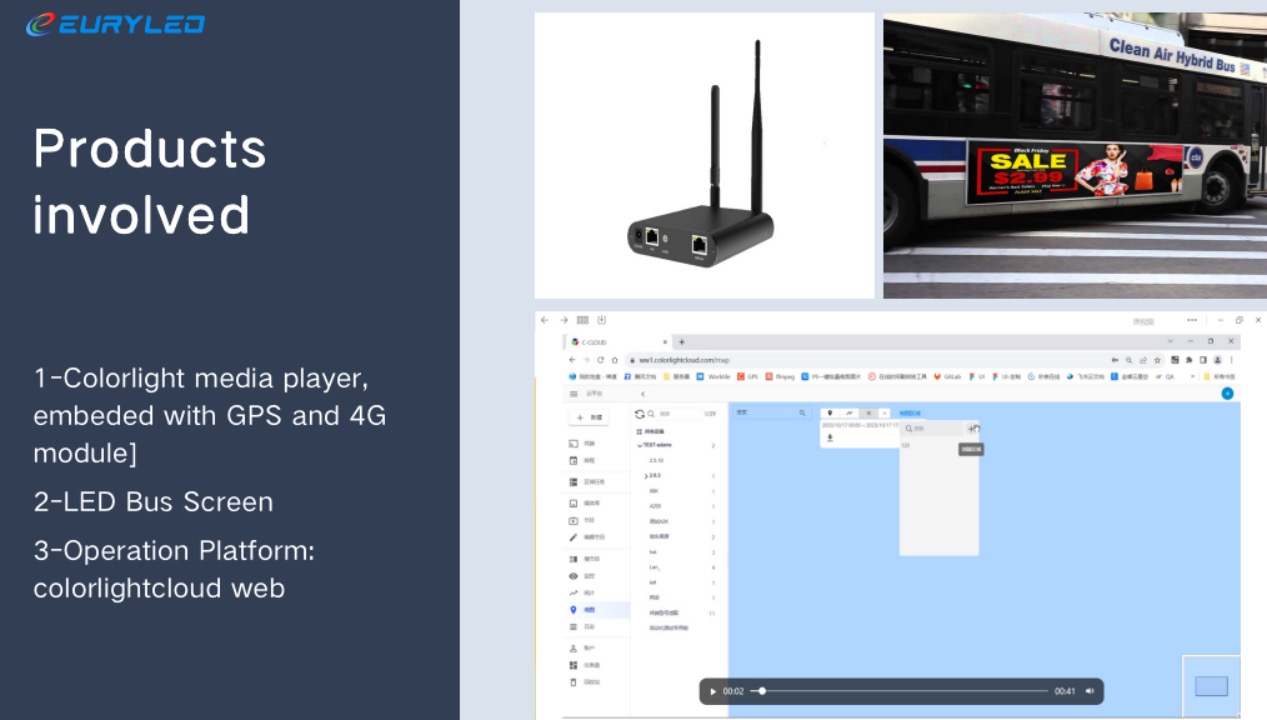

How it work?--GPS, 4G Module & Cloud web.
1. Content Creation: Make the ads or information you want to show.
2. Location Tags: Connect each piece of content to a specific place or route through Colorlight cloud web.
3. Device Setup: Install the A35 Player on the bus; it controls the screen.
4. Real-Time Tracking: GPS follows the bus's location continuously.
5. Location-Based Content: The player switches ads based on where the bus is.
6. Smooth Transitions: Changes happen without disruptions.
7. Remote Updates: Modify ads from a distance using 4G.
8. Monitoring and Fixes: Keep an eye on the system and fix issues remotely.
9. Optional Data Analysis: Get information on how often and where ads are shown for better strategies.
Here is a video for binding different ads with different routes: bind bus route with videos

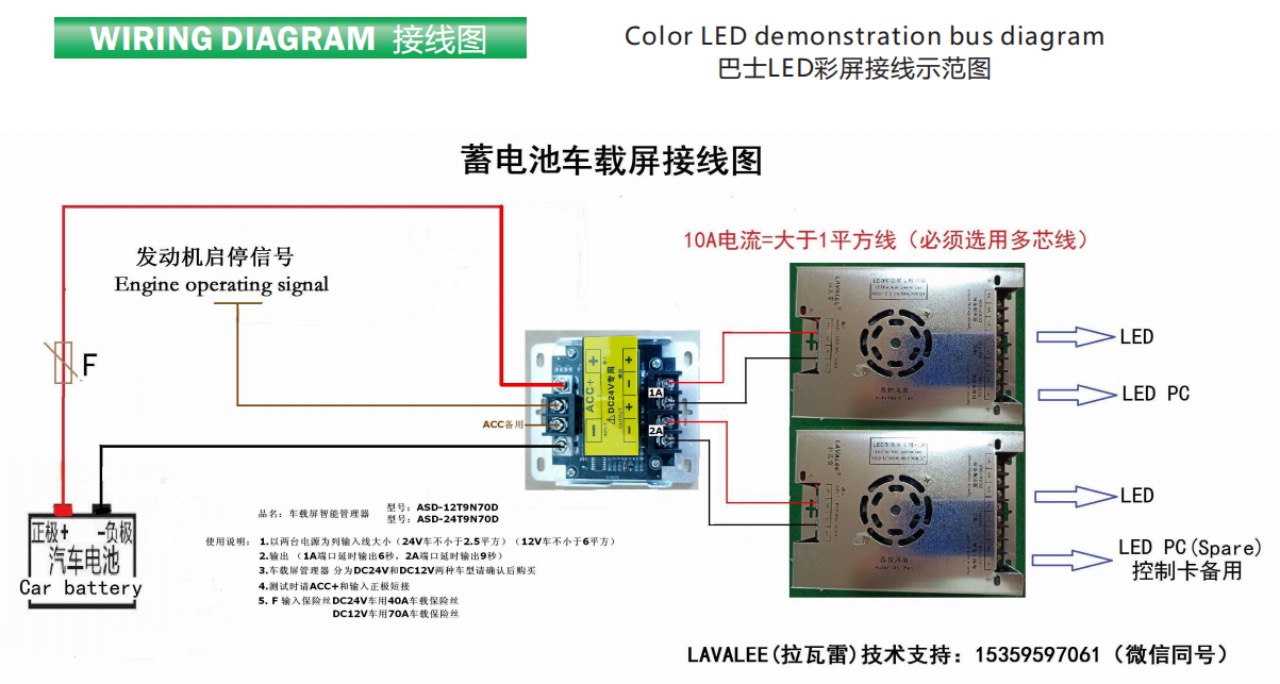

Power Diagram:

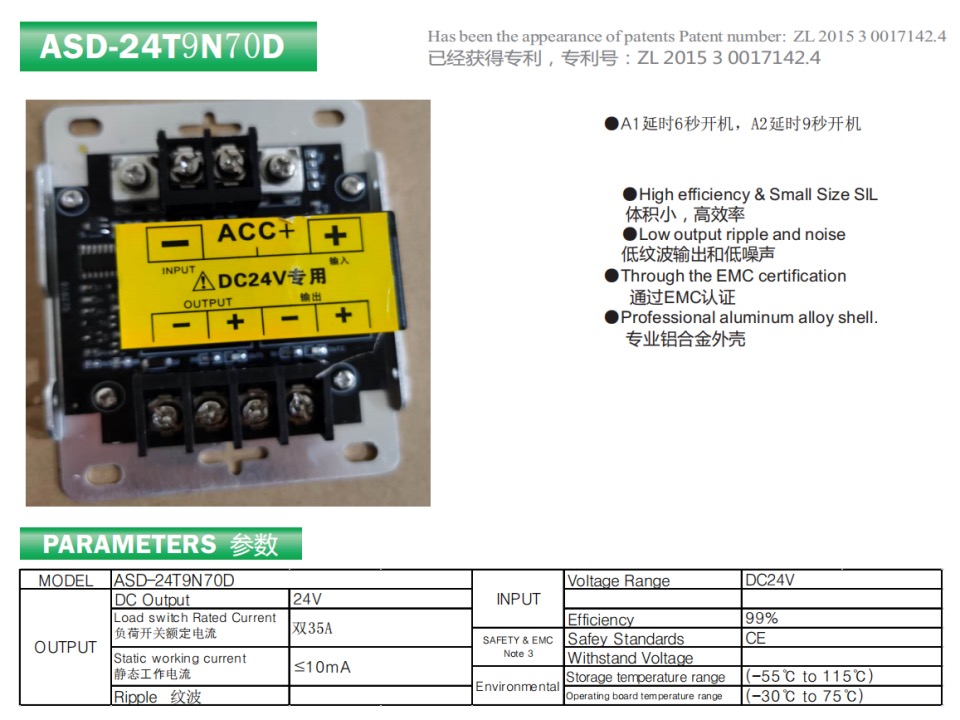

LED vehicle screen power supply intelligent controller:
(Stable voltage at 24V, extending the service life of the power supply)

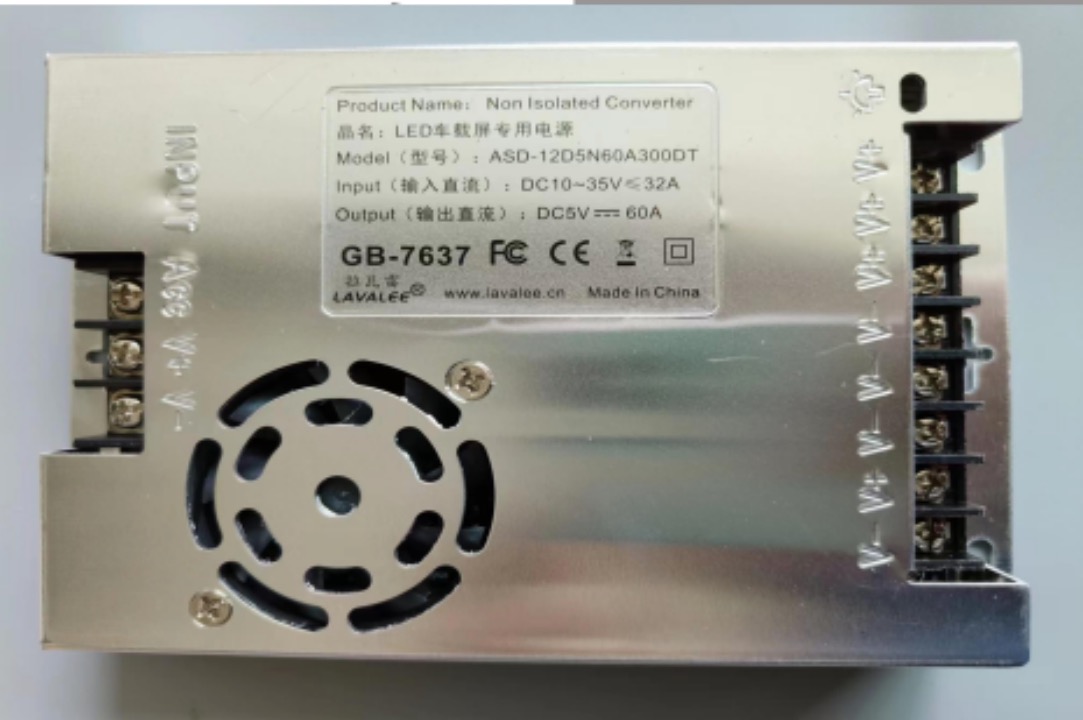

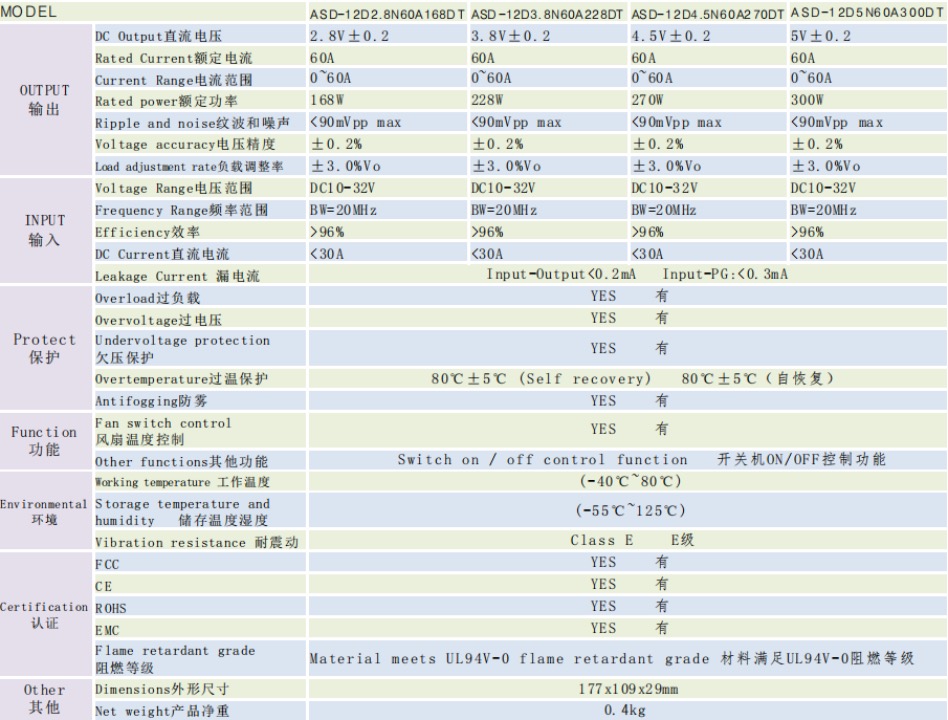

On-board screen dedicated power supply:
Diagram:
